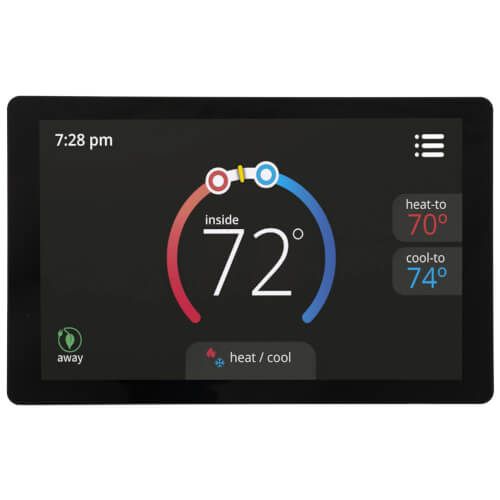

Lennox 22V24 - Lennox S40 Smart Thermostat, Touchscreen, Communicating, WiFi, Programmable, 3 Heat/2 Cool
Brand:
SKU
22V24
Type: Touchscreen Smart Thermostat
Programs per Week: 7 Day
Changeover: Auto changeover
Wi-Fi Enabled: WiFi
Intelligent Recovery: Intelligent Recovery
Product Height: 4.438 Inch
Product Width: 7.063 Inch
Product Depth: 0.75 Inch
Stages: Universal 3 Heat/2 Cool
Easy to read 7 in. high definition color tablet-like display interfaces with the Smart Hub Controller to operate the HVAC systems within the home
Contains a temperature sensor to monitor and control temperatures in the home through the display
Temperature Measurement Range - 0 to 150°F
Contains a humidity sensor to monitor and control humidity levels in the home through the display
Humidity Measurement Range - 10 to 90% relative humidity
Communication from Display to Smart Hub Controller
Two Wire, 18AWG (RSBus) unshielded thermostat cable for low voltage Smart Hub power terminals (R, C, + and -)
Two Wire, 18 to 22AWG (RSBus) shielded thermostat cable recommended for Smart Hub communications terminals (I+, I-, A and B)
