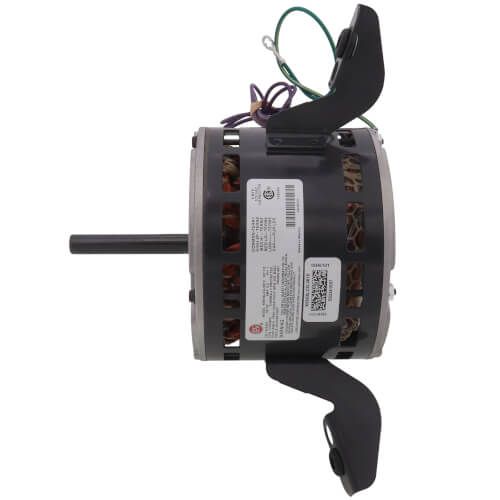

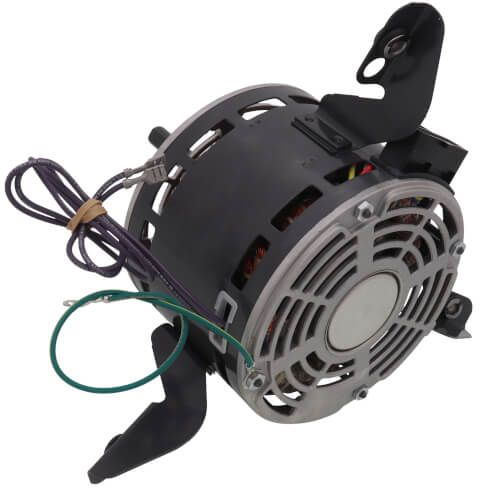

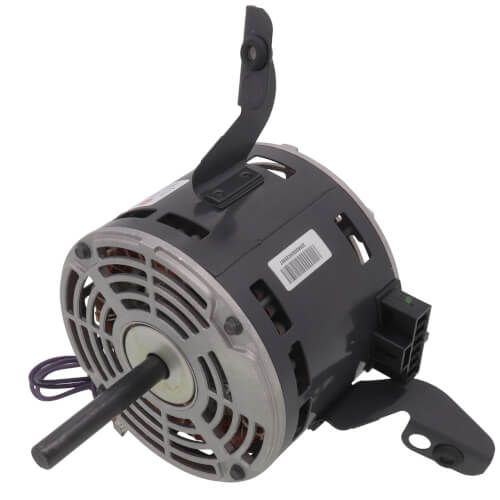

Lennox 18H61 - Blower Motor, 1/3 HP, 208/230V-1Ph, 4 Speed, 48 Frame, 1075 RPM, With Three Welded Mount Arms
Brand:
SKU
18H61
Horsepower: 1/3 HP
Diameter: 5.63 IN
RPM Range: 1075
Gross Weight: 14 LB
Hertz: 60 hz
Phase: 1 Phase
Core Product: No
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 1/3 HP
Number of Speeds: 4 Speed
Frame Size: 48
Motor Mounting Position: Horizontal
Motor Mounting Type: Torsion Flex Bracket
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 3 IN
Capacitor Value: 5 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
Motor Type: PSC
Rotation: CCW/OSE
Frame Size: 48 Frame
