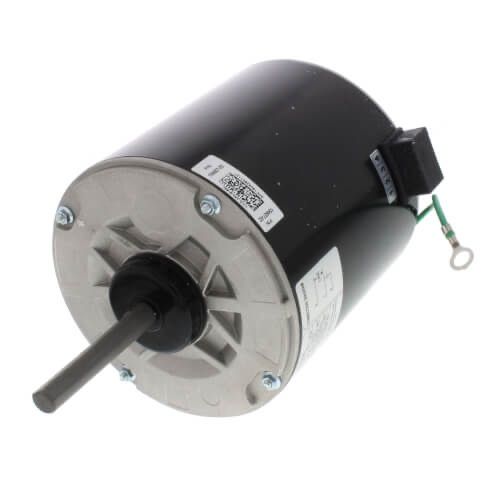

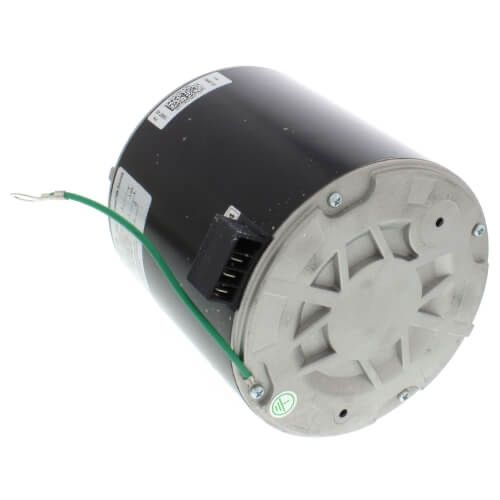

Lennox 14Y70 - ( 104607-02 ) Condenser Fan Motor, 1/3 HP, 1075 RPM, 380/460V-1Ph, 50/60 Hz, 48 Fr, CCWLE

$154.71
Brand: Lennox
Catalog Number: 14Y70
Model/Part Number: 104607-02
Minimum Order Quantity: 0.0
Base Unit of Measure: Unit(S)
Material Description: 104607-02 Condenser Fan Motor, 1/3 HP, 1075 RPM, 380/460V, 50/60 Hz
Horsepower: 1/3 HP
Type: PSC
Gross Weight: 16 LB
Amperage (AMPs): 1.1/0.8A
Bearing Type: Ball
Hertz: 50/60 hz
Phase: 1 Phase
Shaft Length: 3.4
Core Product: No
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 1/3 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Belly Band
Motor Voltage: 380-460 VAC 1 Ph 50/60 Hz
Shaft Size: 1/2 x 3.4 IN
Capacitor Value: 15 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Ball
Speed: 1
More Information
Package Quantity 1 Item
UPC 66255151398
