Brand: Lennox

Catalog Number: 12L13

Model/Part Number: 100202-08

Minimum Order Quantity: 0.0

Base Unit of Measure: EACH

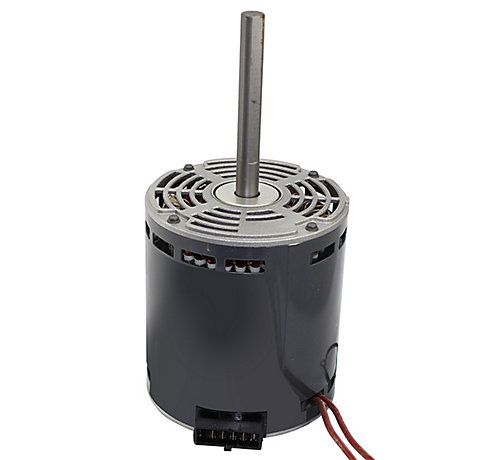

Material Description: Lennox 100202-08 Blower Motor, 1/2HP, 3 Speed, 208-230 Volts, 60 Hz, 1120 RPMRPM, 2.8 Amps

Horsepower: 1/2 HP

RPM Range: 1120

Gross Weight: 15 LB

Amperage (AMPs): 2.8A

Hertz: 60 hz

Phase: 1 Phase

Core Product: No

Motor Type: PSC

RPM: 1120 RPM

Motor HP: 1/2 HP

Number of Speeds: 3 Speed

Frame Size: 48

Motor Mounting Position: Horizontal

Motor Mounting Type: Belly Band

Motor Voltage: 208-230 VAC 1 Ph 60 Hz

Shaft Size: 1/2 x 3 IN

Capacitor Value: 15 MFD 370 VAC

Rotation: CCWLE

Bearing Type: Ball

Speed: 3
