Brand: Lennox

Catalog Number: 12F49

Model/Part Number: 100483-41

Minimum Order Quantity: 0.0

Base Unit of Measure: Unit(S)

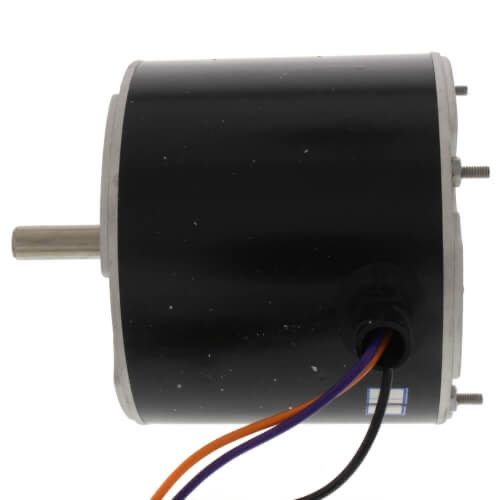

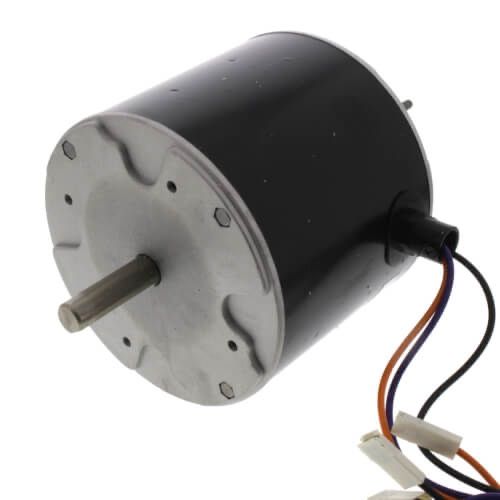

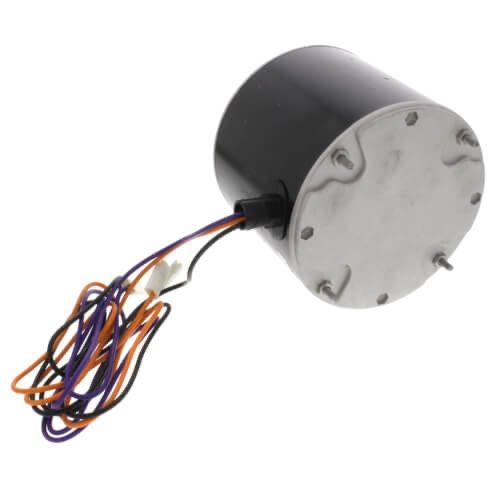

Material Description: Interlink 100483-41 Condenser Fan Motor, 1/10 HP, 208-230 Volts, 1 Phase, 1075 RPM

Product Height: 5.82 IN

Horsepower: 1/10 HP

Type: PSC

Diameter: 4.8 IN

Gross Weight: 8 LB

Amperage (AMPs): 0.7A

Bearing Type: Ball

Hertz: 60 hz

Phase: 1 Phase

Shaft Length: 1.5

Country of Origin: China

Core Product: No

Speed: 1

Voltage Phase: 208/230-1

NEMA Frame Size: 42

Rotation: CCW from lead end

Shaft Diameter: 0.5

Motor Type: PSC

Motor Type: PSC

RPM: 1075 RPM

Motor HP: 1/10 HP

Number of Speeds: 1 Speed

Frame Size: 42

Motor Mounting Position: Vertical

Motor Mounting Type: Stud

Motor Voltage: 208-230 VAC 1 Ph 60 Hz

Shaft Size: 1/2 x 1.5 IN

Capacitor Value: 5 MFD 370 VAC

Rotation: CCWLE

Bearing Type: Ball
