FIX IT FAST, WITH OUR PARTS!

Brand: Lennox

Catalog Number: 11X33

Model/Part Number: 46132-076

Minimum Order Quantity: 0.0

Base Unit of Measure: EACH

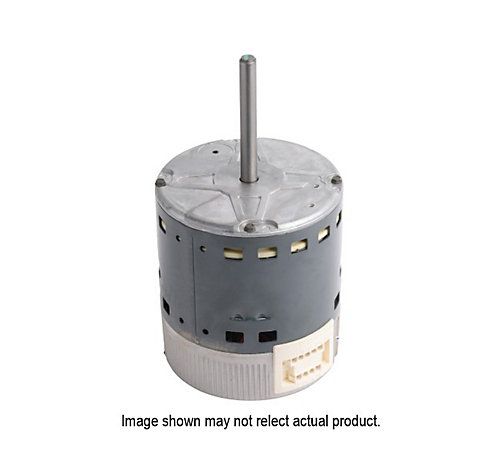

Material Description: Lennox 46132-076 Programmed Blower Motor, 1HP, 208-230 Volts, 600-1200 RPM, 7.6 Amps

Horsepower: 1 HP

RPM Range: 600 - 1200

Gross Weight: 20 LB

Amperage (AMPs): 7.6A

Hertz: 60 hz

Phase: 1 Phase

Core Product: No

Motor Type: ECM - Programmed

RPM: 600-1200 RPM

Motor HP: 1 HP

Number of Speeds: Variable

Frame Size: 48

Motor Mounting Position: Horizontal

Motor Mounting Type: Belly Band

Motor Voltage: 208-230V VAC 1 Ph 60 Hz

Shaft Size: 1/2 x 3.92 IN

Rotation: CCWLE

Bearing Type: Ball

Motor Type: ECM

Rotation: CCW
