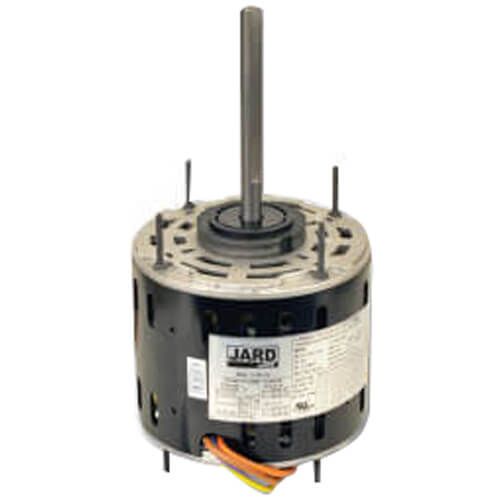

Jard 22463 - 1/6-1/2 HP 115V 1075 DIRECT
Brand:
SKU
22463
No. of Poles: 6
Motor Type: PSC
Enclosure: OAO
HP (Max.): 1/2
Voltage: 115
Mounting: Belly Band, Resilient Ring
Speeds: 4
Hz: 60
Rotation: REV
Multi-Rated HP: 1/6-1/2
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 6.2
Bearing: Sleeve
Lead Length (in.): 32
Thermal Protection: Auto
Ambient Deg C: 40
Ins. Class: B
Shaft Dia. (in.): 1/2
Capacitor Included: No
Shaft Length (in.): 5.5
Capacitor Rating: 15/7.5/5/370
Service Factor: 1.0
Duty: Continuous
