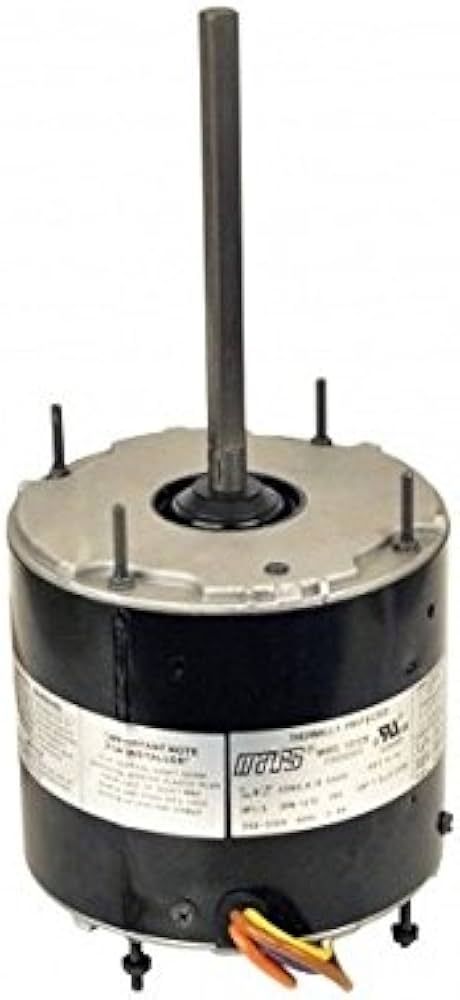

Jard 22458 - 1/3-1/6HP 208-230V 1075RPM
Brand:
SKU
22458
No. of Poles: 6
Motor Type: PSC
Enclosure: TEAO
HP (Max.): 1/3
Voltage: 208-230
Mounting: Belly Band, Extended Clampbolts
Speeds: 1
Hz: 60
Rotation: REV
Multi-Rated HP: 1/6-1/3
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 2.8
Bearing: Ball
Lead Length (in.): 32
Thermal Protection: Auto
Ambient Deg C: 60
Ins. Class: B
Shaft Dia. (in.): 1/2
Capacitor Included: No
Shaft Length (in.): 6.5
Capacitor Rating: 7.5/370
Service Factor: 1.0
Duty: Continuous
