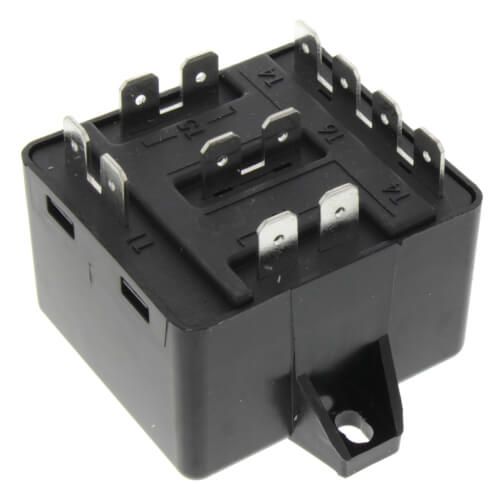

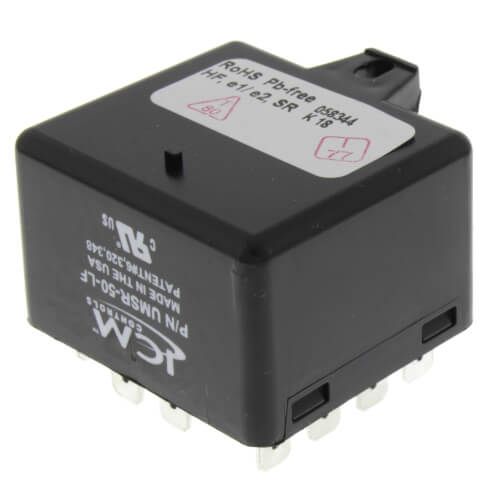

ICM Controls UMSR-50B-LF - UMSR-50 Universal Motor Starting Relay
Brand:
SKU
UMSR-50B-LF
Product Type: Starting Relay
Voltage Rating Input: 110-270 VAC (Single Phase)
Max. Voltage Contact Rating Input: 502 VAC (absolute)
Motor Power Rating: Up to 10 HP
Operating Position: Non-positional
Safety Time Out: Approx. 1-second per 100 microfareds
Insulation: Class B (130°C); Conforms to IEC 1000-standards (6kV impulse/6kV contact)
Consumption: 5VA max
Contact Ratings: 50A (break only), 400 VAC cos Ø= 0.7 to 0.8
