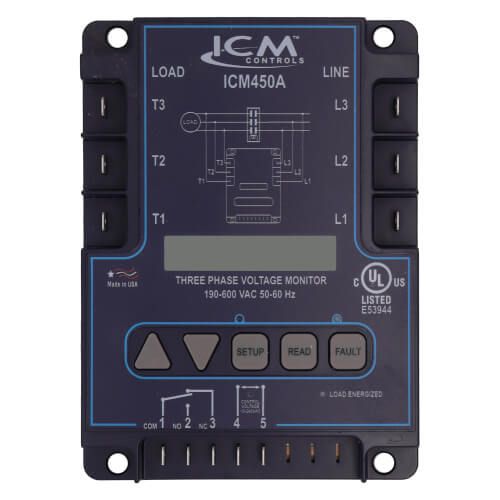

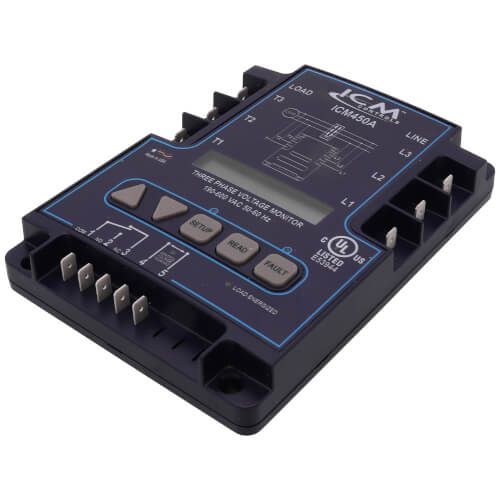

ICM Controls ICM450A - 3 Phase Line Voltage Monitor - Delay on Break Timer, 0-10 Minutes (English & Spanish)
Brand:
SKU
ICM450A
Input:
Line Voltage: Universal, 190-600 VAC
Frequency: 50-60 Hz
Load Side Monitoring: Optional
Control Voltage: 18-240 VAC
Output:
Type: Relay, SPDT
Voltage Range: 277 VAC @ 6A maximum
Operating Temperature: -40° to 149°F (-40° to 65°C)
Storage Temperature: -40° to 185°F (-40° to 85°C)
Mounting: Surface mount using (2) #8 screws
Terminations: 1/4" quick connects
Weight: 12 ounces (341 grams)
Dimensions: 6.5" x 4.75" x 1.09"
