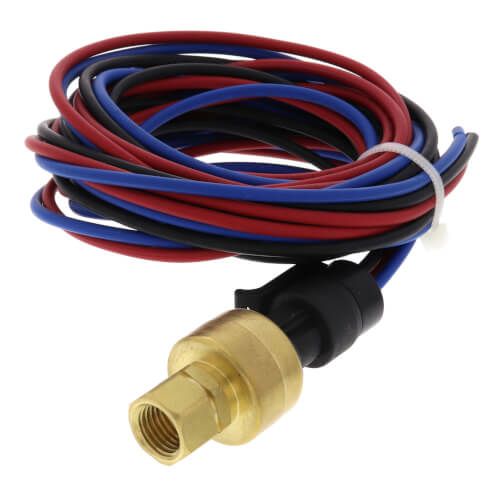

ICM Controls ICM380 - Pressure Transducer
Brand:
SKU
ICM380
Product Type: Pressure Transducer
Length: 72 inches
Pressure Range: 0 to 500 psi
Operating Temp Range: -40°C to +135°C
Supply Voltage: 4.5 to 5.5 Vdc
Output Voltage: 0.5 to 4.5 Vdc typical
Supply Current: 8 mA (max. @ 5.5 Vdc w/ no load)
Output Current: 2.5 mA (max. sink or source)
Output Load: 10K ohms typical
Output Response Time: 10 ms
Overvoltage Protection: 16 Vdc
Reverse Voltage: 14 Vdc
Short Circuit Protected: Yes
