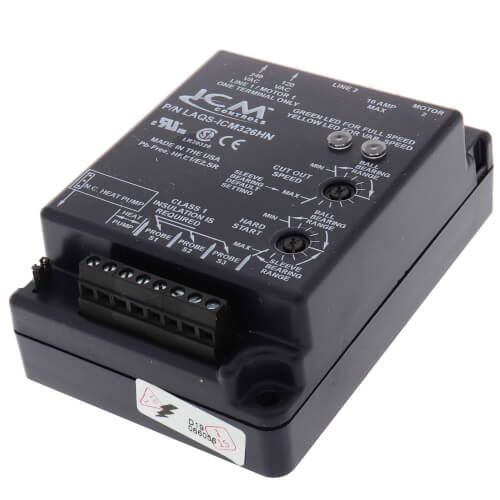

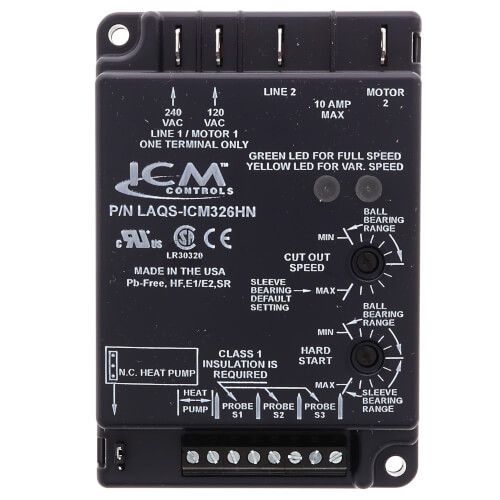

ICM Controls ICM326HNC-LF - ICM326HN Single-Phase Head Pressure Control (120, 208/240 VAC)
Brand:
SKU
ICM326HNC-LF
Head Pressure Control
Minimum AC Voltage 120 Volt
Maximum AC Voltage 208/240 Volt
Frequency Rating 50/60 Hertz
Output Signal 100 Milliamp to 10 Amp
Operating Temperature -40 to 176 Deg F
Size 4.75 Inch Length x 3.25 Inch Width x 1.75 Height
Application Air Conditioning and Refrigeration
Approval UL (Canada and US), CSA, CE
RoHS Compliant
Lead-Free
Type Solid State
Form Triac
Power Consumption 4 Volt Amp at 24 Volt AC
Voltage Drop 3 Volt
Leakage Current 5 Milliamp
Dielectric Breakdown 2500 Volt
Insulation Resistance 100 Mega Ohm
