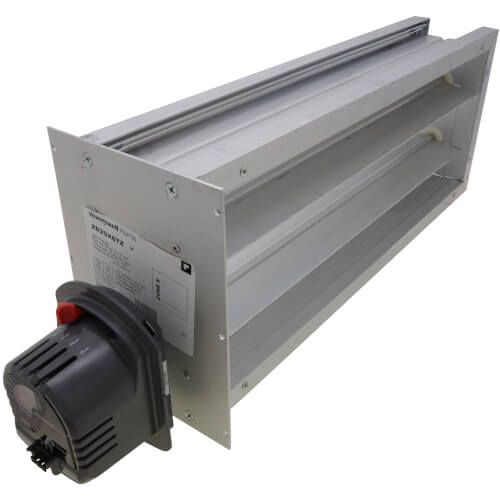

Zone Control Damper

Type Rectangular, Parallel Blade

Duct Size 20 Inch x 8 Inch

Blade Material Extruded Aluminum

Inclusions/Features Spring Return, Mechanical Visual Position Indicator, Fail Safe, Normally Open Operation

Motor Rating 24 Volt AC at 60 Hertz 8 Volt Amp

Motor Torque Rating 71 Inch-Ounce

Temperature Rating 40 to 140 Deg F

Pressure Drop Less than 0.0329 Inch WC at 800 Foot per Minute

Motor Angular Rotation 90 Degree

Less than 1 Percent at 1/2 Inch WC

Maximum Static Pressure Rating 1 Inch WC

Motor Mounting Type Side

Motor Type Power Closed, Spring Open

Motor Timing 30 Second (Power Open)/10 Second (Spring Return)

Wires to Motor Terminal M1-Power, M6 Common, M4 (Optional) LED Indication

Application Parallel Blade Damper
