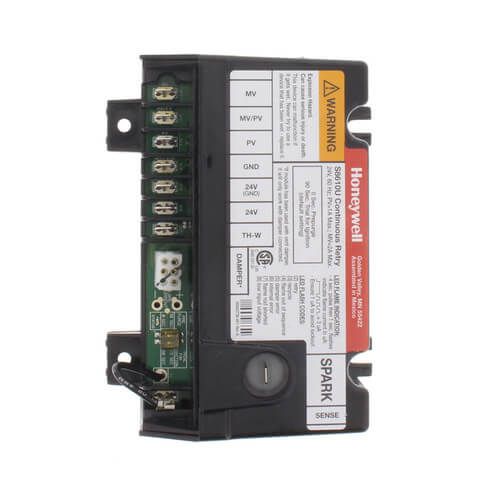

Resideo Y8610U6006 - Intermittent Pilot Control Conversion Kit (for 270,000 BTU Units)
Brand:
SKU
Y8610U6006
Gas Burner Ignition System
Type Universal Retrofit, Intermittent Pilot
Fuel Type Natural/Liquid Propane Gas
Flame Sense Type Single or Dual Rod
Ignition Source Internal High Voltage Spark Generator
Ignition Sequence Continuous Retry
Ignition Trial Time 15/90 Second
Prepurge Time 0 to 30 Second
Flame Failure Response Time 2 Second
Valve Rating 1 Amp Pilot/2 Amp Main at 24 Volt AC
Power Rating 24 Volt AC at 60 Hertz
Size 5-7/16 Inch Width x 2-5/8 Inch Depth x 3-15/16 Inch Height
Temperature Rating -40 to 165 Deg F
Application Gas Fired Atmospheric Furnace, Boiler, Heating Appliance

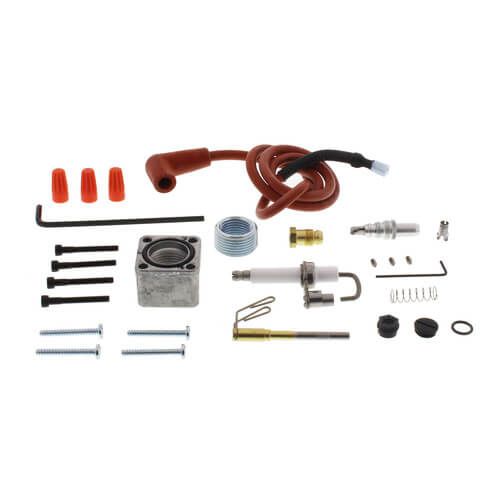

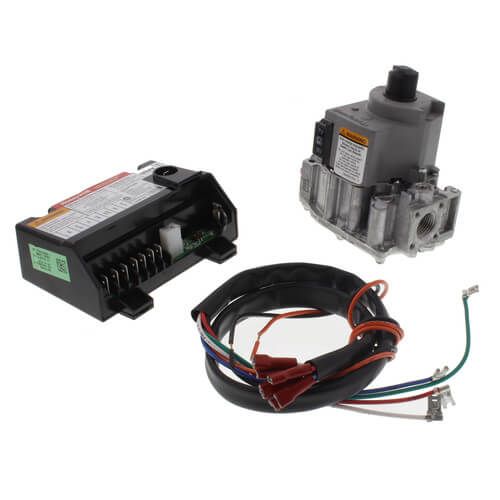

Includes Gas Valve, Ignition Module, Pilot Burner Hardware, Ignition Cable, Wiring Harness
Resideo Y8610U6006 - Intermittent Pilot Control Conversion Kit (for 270,000 BTU Units)
Gas Burner Ignition System
Type Universal Retrofit, Intermittent Pilot
Fuel Type Natural/Liquid Propane Gas
Flame Sense Type Single or Dual Rod
Ignition Source Internal High Voltage Spark Generator
Ignition Sequence Continuous Retry
Ignition Trial Time 15/90 Second
Prepurge Time 0 to 30 Second
Flame Failure Response Time 2 Second
Valve Rating 1 Amp Pilot/2 Amp Main at 24 Volt AC
Power Rating 24 Volt AC at 60 Hertz
Size 5-7/16 Inch Width x 2-5/8 Inch Depth x 3-15/16 Inch Height
Temperature Rating -40 to 165 Deg F
Application Gas Fired Atmospheric Furnace, Boiler, Heating Appliance
Includes Gas Valve, Ignition Module, Pilot Burner Hardware, Ignition Cable, Wiring Harness
