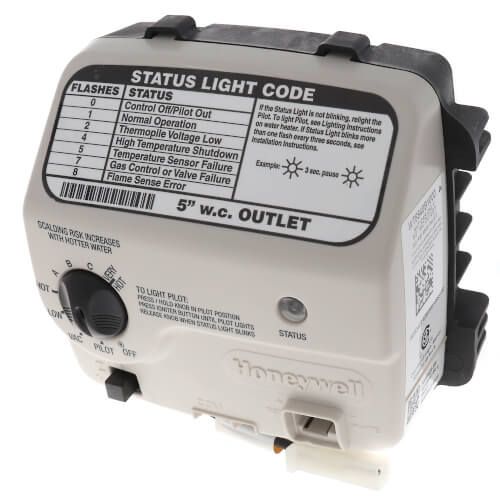

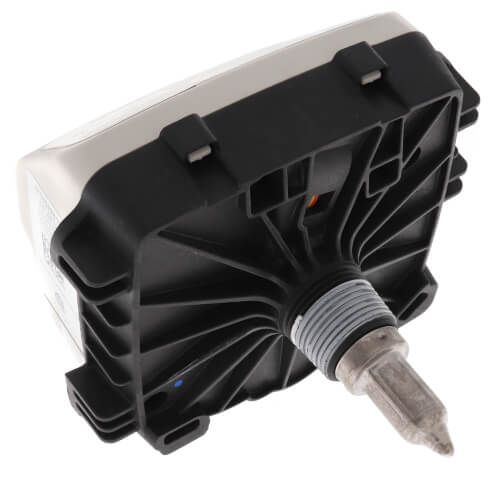

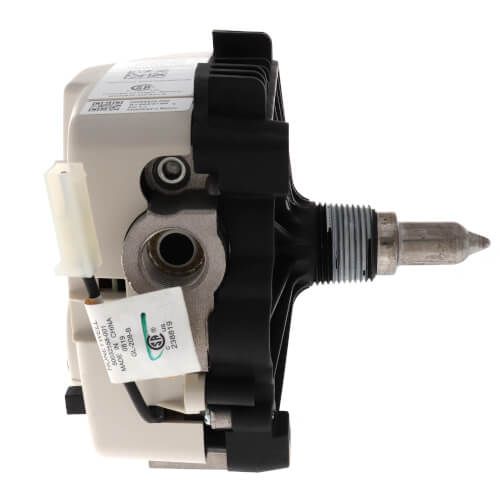

Resideo WT8840B1000 - WT8840 Water Heater Gas Valve Control, NG - 1" Spud, 5" W.C.
Brand:
SKU
WT8840B1000
Water Heater Control
Item Water Heater Control
Type 90 Degree
Port Connection 1/2 Inch Threaded x 1/2 Inch Inverted Flare
Input Supply Rating 350 to 850 Millivolt DC
Temperature Rating 0 to 150 Deg F
Pressure Rating 5 Inch WC
Media Handled Gas
Inclusions/Features Integrated NTC Temperature Sensor
Application Water Heater
Applicable Standard CSA 6.20/4.6, CAN/CSA C22.2, ANSI Z21.20/Z21.23/Z21.78/Z21.87
Tank Insulation Size 1 Inch
Ambient Temperature 32 to 150 Deg F, -40 to 150 Deg F (Storage), 55 Deg F to 155 Deg F Valve (Set Point)
Mounting Position Upright
Capacity 30 Foot per 3 Hour to 75 Foot per 3 Hour
Humidity 95 Percent (Non-Condensing) at 104 Deg F
