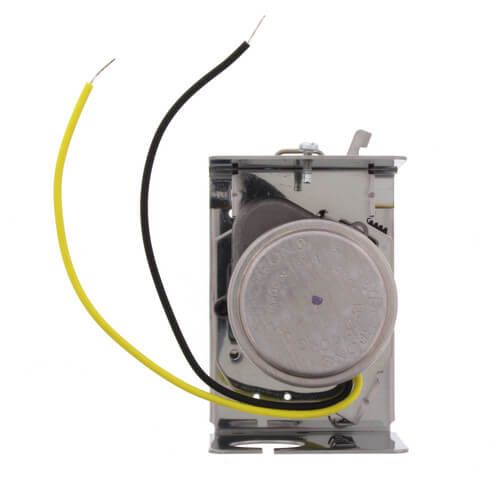

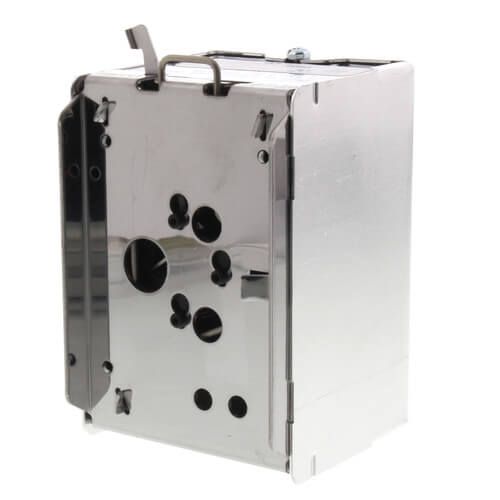

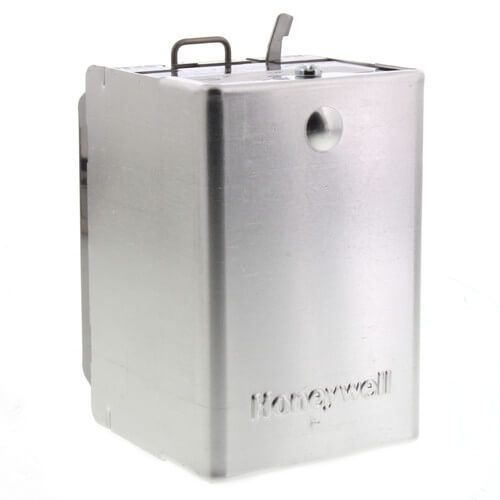

Honeywell Home VU444A1007 - Two-Position Actuator for VU52 N.O. and VU54 Valve Bodies, 120V 60Hz
Brand:
SKU
VU444A1007
Valve Actuator
Type SPST, 2-Position
Operation Type Spring Return
Voltage Rating 120 Volt AC
Maximum AC Voltage 120 Volt
Frequency Rating 60 Hertz
Power Rating 6 Watt (Driving)
Angle of Rotation 45 Degree
Size 3-1/2 Inch Width x 2-3/8 Inch Height
Supply Connection Size 6 Inch Wire Lead
Body Material Stainless Steel
Operating Temperature 34 to 125 Deg F (Ambient)
Application HVAC System
Approval CSA (Canada and US)
Honeywell Home VU444A1007 - Two-Position Actuator for VU52 N.O. and VU54 Valve Bodies, 120V 60Hz
Valve Actuator
Type SPST, 2-Position
Operation Type Spring Return
Voltage Rating 120 Volt AC
Maximum AC Voltage 120 Volt
Frequency Rating 60 Hertz
Power Rating 6 Watt (Driving)
Angle of Rotation 45 Degree
Size 3-1/2 Inch Width x 2-3/8 Inch Height
Supply Connection Size 6 Inch Wire Lead
Body Material Stainless Steel
Operating Temperature 34 to 125 Deg F (Ambient)
Application HVAC System
Approval CSA (Canada and US)
