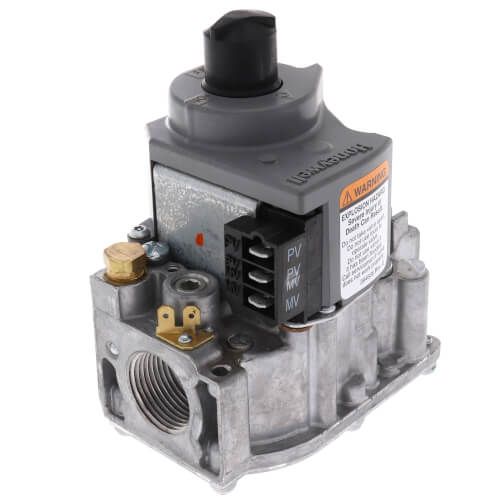

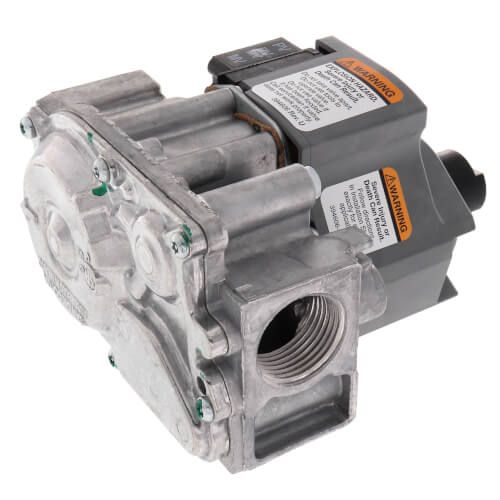

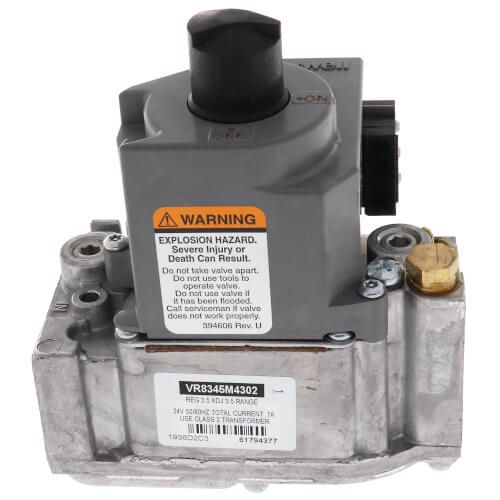

Resideo VR8345M4302 - Standard Dual Direct Ignition/Intermittent Pilot Gas Valve
Brand:
SKU
VR8345M4302
Gas Valve
Type Universal Electronic/Direct/Intermittent Pilot Operated, 1-Stage, Straight-Through
Port Connection 3/4 Inch Compression x 3/4 Inch Compression
Input Supply Rating 24 Volt AC at 50/60 Hertz
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Mounting Details 0 to 90 Degree in any Direction from Upright Position of Gas Control Knob, Including Vertically
Media Handled Gas
Inclusions/Features (2) 3/4 Inch x 1/2 Inch Reducer Bushing, Natural to Liquid Propane Conversion Kit, Standard Opening, Manual Valve, (2) Automatic Operator, Pressure Regulator, Pilot Adjustment, Pilot Plug and Ignition Adapter, Low Voltage
Application Residential Gas Fired Appliance
Applicable Standard UL, CSA
Overall Dimension 4-1/16 Inch Width x 2-11/16 Inch Depth x 5-3/8 Inch Height
Pressure Regulator Setting 3.5 Inch WC
Pressure Tapping Size 1/8 Inch Threaded with Plug
Flow Capacity 30 to 415 CFH
Electrical Connection 1/4 Inch Quick Connect Male Terminal
