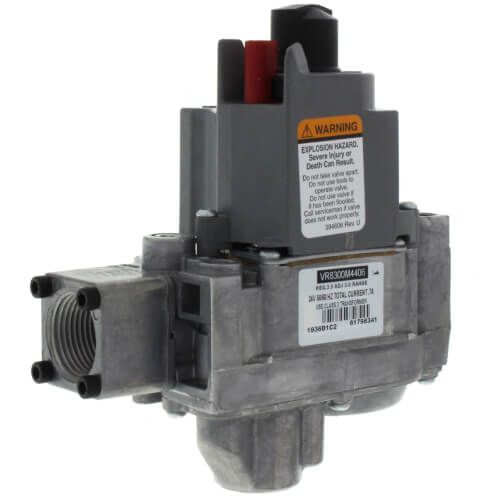

Resideo VR8300M4406 - 24V Dual Standing Pilot Gas Valve, 200,000 BTU
Brand:
SKU
VR8300M4406
Combination Gas Control Valve
Type 1-Stage, Low Voltage, Standard Opening
Nominal Size 3/4 Inch
End Connection Threaded x Threaded
End to End Distance 4-1/16 Inch
Input Supply Rating 24 Volt AC at 50/60 Hertz
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Natural to Liquid Propane Conversion Kit, (2) 3/4 Inch x 1/2 Inch Reducer Bushing, Safety Shut-Off, Manual Valve, (2) Automatic Operator, Pressure Regulator and Pilot Adjustment
Application Gas Fired Appliance, Residential Combustion Control
Applicable Standard UL, CSA
Overall Dimension 2-11/16 Inch Depth x 5-3/8 Inch Height
Connection Type 1/4 Inch Quick Connect Male Terminal
Body Pattern Straight-Through
Ignition Type Standing Pilot
Capacity 200000 to 30000 BTU/Hour
Pressure Tapping 1/8 Inch Threaded
Pressure Regulator Set Point 3.5 Inch WC
Mounting 0 to 90 Degree Vertical Installation
