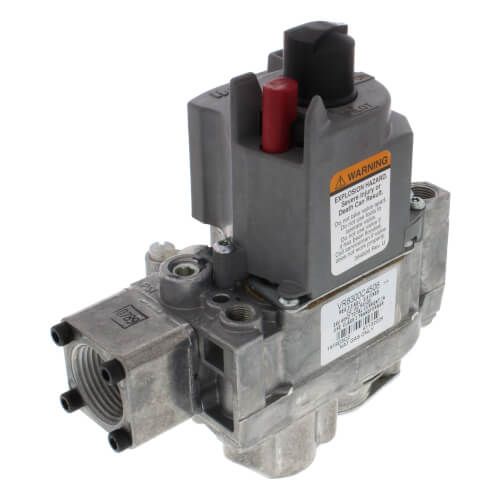

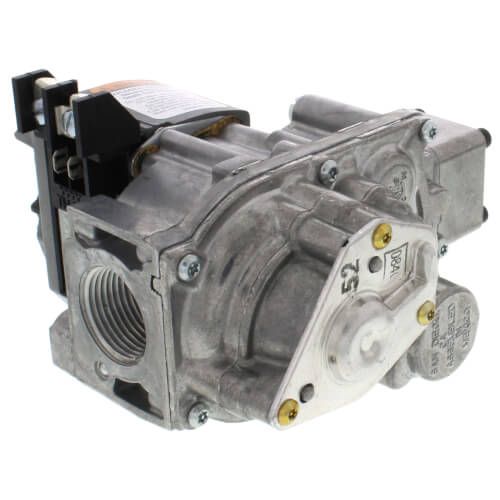

Resideo VR8300C4506 - Step Opening Dual Standing Pilot Gas Valve - 3/4" x 3/4"
Brand:
SKU
VR8300C4506
Solenoid Gas Valve
Type Standing Pilot Operated, 1-Stage, Straight-Through, Diaphragm
Port Connection 3/4 Inch Straight Flange x 3/4 Inch Compression
Input Supply Rating 24 Volt AC at 60 Hertz
Temperature Rating 0 to 175 Deg F
Pressure Rating 1/2 PSI
Mounting Details 0 to 90 Degree in any Direction from Upright Position of Gas Control Knob, Including Vertically
Media Handled Gas
Inclusions/Features (2) 3/4 Inch x 1/2 Inch Reducer Bushing, Safety Shut-Off, Step Opening, Manual Valve, (2) Automatic Operator, Pressure Regulator and Pilot Adjustment, Low Voltage
Application Residential Gas Fired Appliance
Applicable Standard UL, CSA, AGA
Overall Dimension 4-1/16 Inch Width x 2-11/16 Inch Depth x 5-3/8 Inch Height
Pressure Regulator Setting 3.5 Inch WC
Pressure Tapping Size 1/8 Inch Threaded with Plug
Flow Capacity 30 to 300 CFH
Electrical Connection 1/4 Inch Quick Connect Male Terminal
