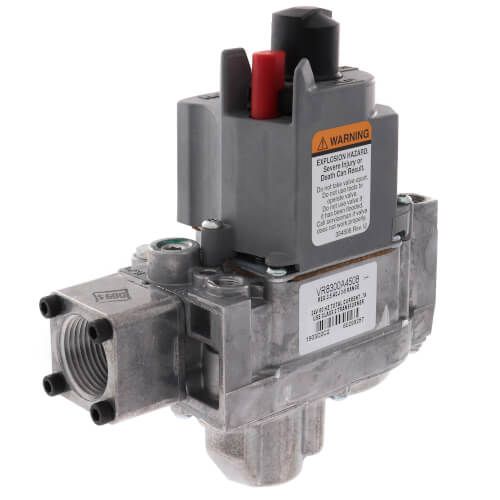

The VR8300 continuous pilot dual automatic valve combination gas controls are used in gas-fired, standing pilot appliances. They include safety shutoff, a manual valve, two automatic operators, and a pressure regulator.

Features:

Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment

Compact size

Provide two automatic valves

Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends

Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted

Meets codes requiring dual safety shutoff

All adjustments, wiring connections and pilot outlet are accessible from top of control

Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure

Compatible with ECO connector

LITE-RITE (OFF-PILOT-ON) lighting sequence

Fuel Type: Natural Gas

Body Pattern: Straight-Through with Flange

Voltage: 24v

Capacity (BTU): 200000

Inlet Size: 3/4"

Outlet Size: 3/4"

Ignition Type: Standing Pilot
