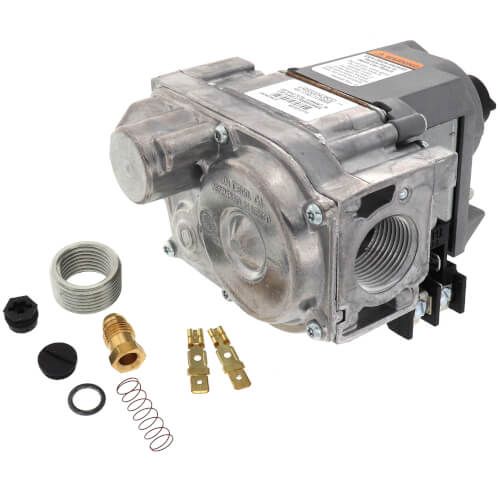

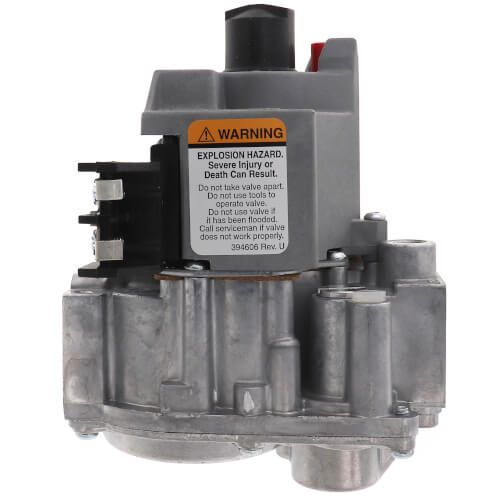

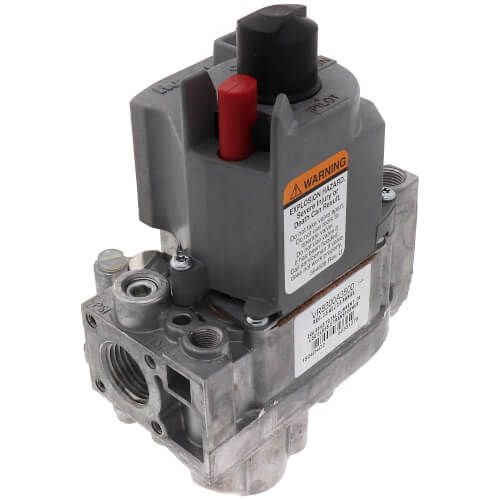

Resideo VR8300A3500 - Standard Dual Standing Pilot Gas Valve - 1/2" x 3/4"
Brand:
SKU
VR8300A3500
Combination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.
Features:
Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.
Compact size.
Provide two automatic valves.
Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
Meet codes requiring dual safety shutoff.
Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
LITE-RITE (OFF-PILOT-ON) lighting sequence.
All adjustments, wiring connections and pilot outlet are accessible from top of control.
Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
Compatible with ECO connector.
Hide Description
Fuel Type:
Natural Gas
Body Pattern:
Straight-Through with Flange
Voltage: 24v
Capacity (BTU): 190000
Inlet Size: 1/2" NPT, 1/2"
Outlet Size: 3/4"
Ignition Type: Standing Pilot
