Includes: Natural to LP Conversion Kit, one 1/2" x 3/8" reducer bushing

Specifications:

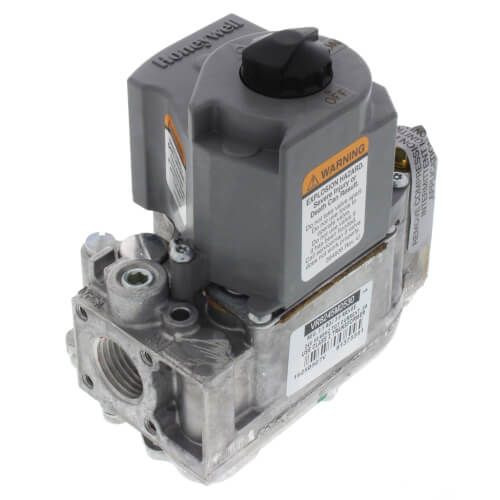

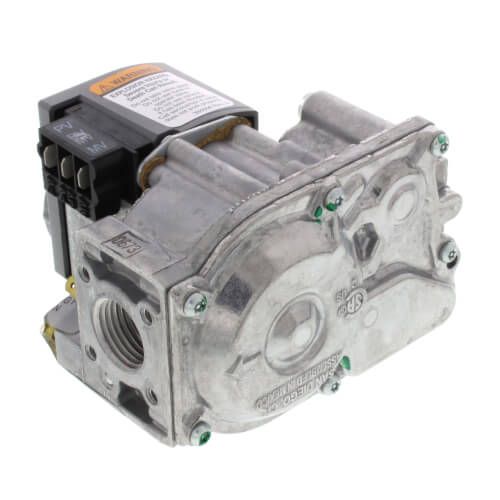

Description: 24 Vac Dual Intermittent Pilot Gas Valve with 1/2 in. x 1/2 in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting

Type: Single Stage

Ignition Type: Intermittent Pilot

Type of Gas: Natural or LP

Inlet/Outlet Size (in.): 1/2 in. x 1/2 in.

Body Pattern: Straight-through

Opening Characteristics: Standard

Capacity @ 1 in. p.d.: 150,000 BTU/hr

Pressure Ratings (psi): 1/2 psi

Pressure Ratings (kPa): 3.5 kPa

Pressure Regulator Setting (psi): 3.5 in. wc

Pressure Regulator Setting (kPa): 0.9 kPa

Electrical Ratings: 24 Vac

Frequency: 60 Hz; 50 Hz

Temperature Range (F): -40 F to +175 F

Temperature Range (C): -40 C to +79 C

Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically

Fuel Type: Propane, Natural Gas

Body Pattern: Straight-Through

Voltage: 24v

Capacity (BTU): 200000

Inlet Size: 1/2" NPT, 1/2"

Outlet Size: 1/2"

Ignition Type: Intermittent Pilot
