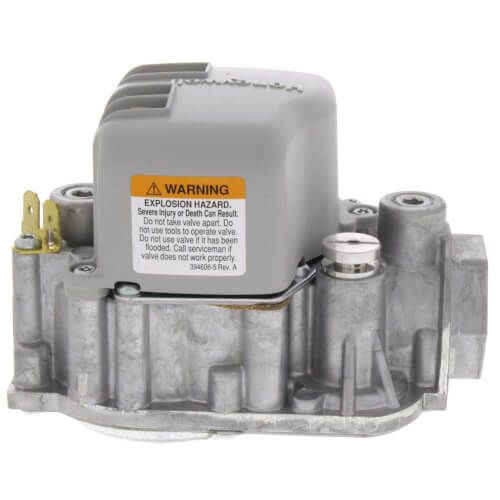

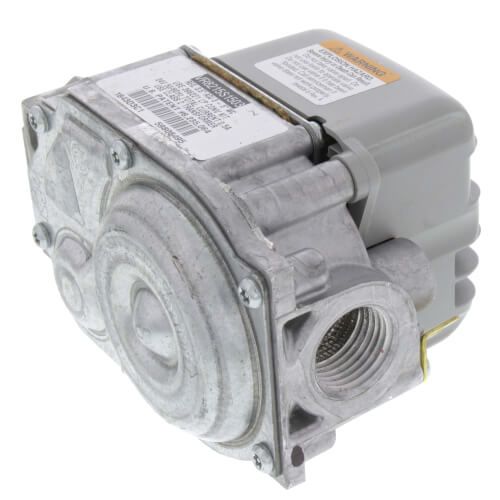

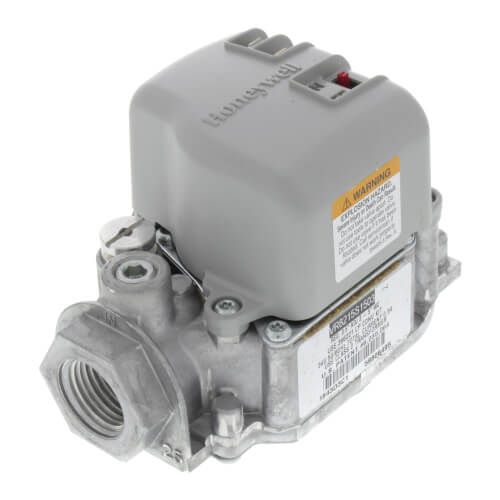

Resideo VR8215S1503 - 1/2", 1-Stage Direct Ignition Gas Valve, 3.5" WC (24V)
Brand:
SKU
VR8215S1503
Combination Gas Control Valve
Type 1-Stage, Standard Opening, Direct Ignition Dual Automatic Valve, Straight-Through
Nominal Size 1/2 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 4.44 Inch
Supply Connection 1/4 Inch Quick Connect Male Terminal
Input Supply Rating 24 Volt AC at 50/60 Hertz
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Natural to Liquid Propane Conversion Kit
Application Gas Fired Appliance
Applicable Standard CSA
Overall Dimension 2.7 Inch Depth x 3.38 Inch Height
Fuel Type Natural
Flow Capacity 15000 to 200000 BTU/Hour
Pressure Tapping 1/8 Inch Threaded with Plug
Pressure Regulator Set Point 3.5 Inch WC
Mounting Type Multi-Poise
