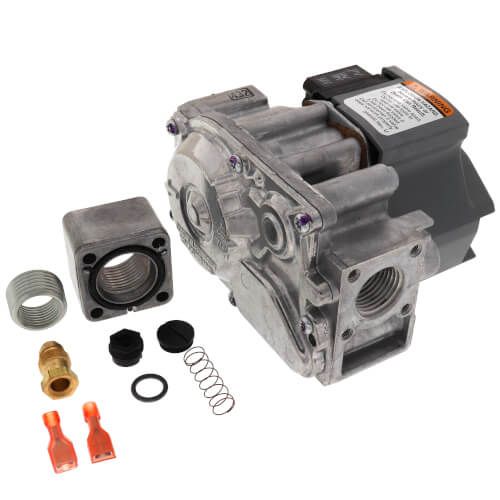

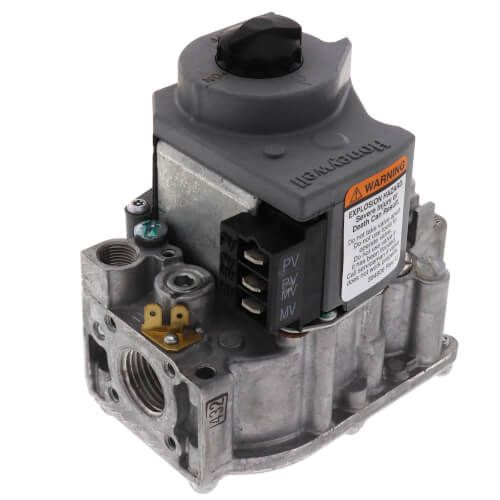

Resideo VR8204M1091 - Standard Dual Intermittent Pilot Gas Valve
Brand:
SKU
VR8204M1091
Product Specifications:
Description: 24 Vac Dual Intermittent Pilot Gas Valve with 1/2 in. x 1/2 in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting
Type: Single Stage
Ignition Type: Intermittent Pilot
Type of Gas: Natural
Inlet/Outlet Size (in.): 1/2 in. x 1/2 in.
Body Pattern: Straight-through
Opening Characteristics: Standard
Capacity @ 1 in. p.d.: 150,000 BTU/hr; 20,000 BTU/hr minimum
Pressure Ratings (psi): 1/2 psi
Pressure Ratings (kPa): 3.5 kPa
Pressure Regulator Setting (psi): 3.5 in. wc
Pressure Regulator Setting (kPa): 0.87 kPa
Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
Pressure Tapping: 1/8 in. NPT with plug
Electrical Connections: 1/4 in. quick-connect male terminals
Electrical Ratings: 24 Vac
Frequency: 60 Hz
Anticipator Setting: 0.5 A
Temperature Range (F): -40 F to +175 F
Temperature Range (C): -40 C to +79 C
Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
Dimensions (in.): 4 15/16 in. high x 4 1/8 in. wide x 2 11/16 in. deep
Dimensions (mm): 125 mm high x 104 mm wide x 69 mm deep
Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025006; CSA Design Certified: File No. L2025006
Fuel Type: Natural Gas
Body Pattern: Straight-Through
Voltage: 24v
Capacity (BTU): 150000
Inlet Size: 1/2"
Outlet Size: 1/2"
Ignition Type: Intermittent Pilot
