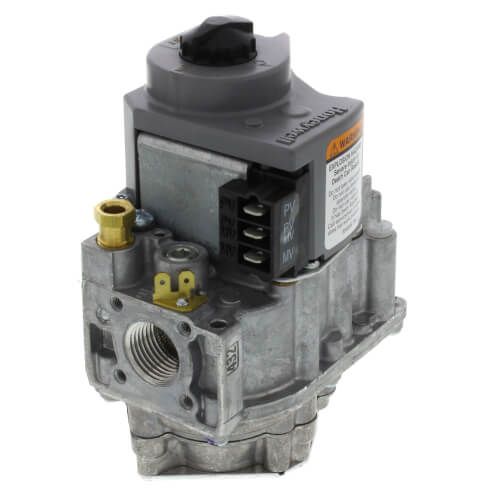

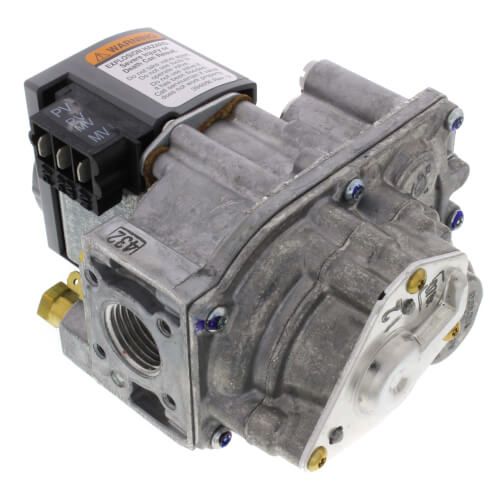

Resideo VR8204C1019 - 24 Vac Dual Intermittent Pilot Gas Valve (1/2" x 1/2" inlet/outlet)
Brand:
SKU
VR8204C1019
Solenoid Gas Valve
Type Intermittent Pilot Operated, 1-Stage, Straight-Through, Diaphragm, Dual Automatic
Port Connection 1/2 Inch Compression x 1/2 Inch Compression
Input Supply Rating 24 Volt AC at 60 Hertz
Temperature Rating 0 to 175 Deg F
Pressure Rating 1/2 PSI
Mounting Details 0 to 90 Degree in any Direction from Upright Position of Gas Control Knob, Including Vertically
Media Handled Natural Gas
Inclusions/Features Safety Shut-Off, Manual Valve, (2) Automatic Operator, Pressure Regulator, Pilot Adjustment, Step Opening
Application Residential Gas Fired Appliance
Applicable Standard UL, CSA, AGA
Overall Dimension 4-1/8 Inch Width x 2-11/16 Inch Depth x 4-15/16 Inch Height
Pressure Regulator Setting 3.5 Inch WC
Pressure Tapping Size 1/8 Inch Threaded with Plug
Electrical Connection Combination Screw and 1/4 Inch Male Quick Connect
