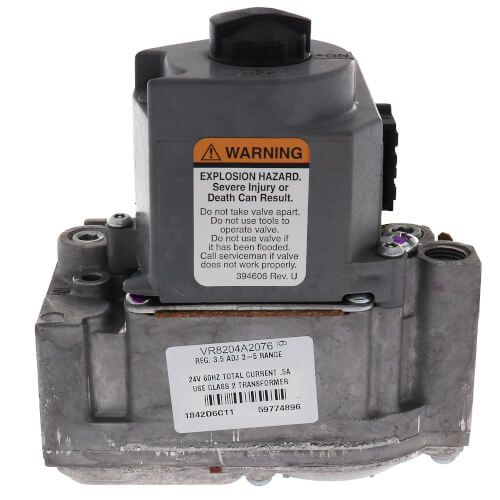

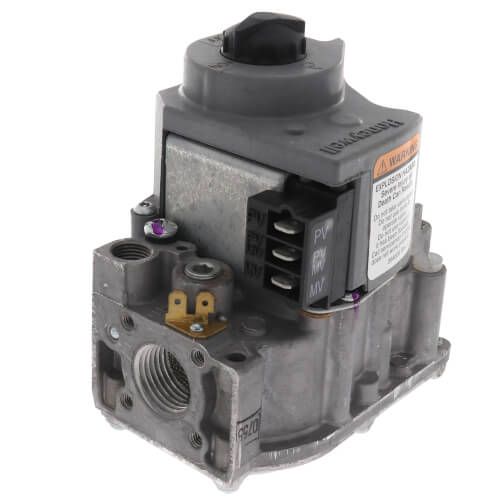

Resideo VR8204A2076 - Standard Dual Intermittent Pilot Gas Valve
Brand:
SKU
VR8204A2076
Gas Control Valve
Type 1-Stage, Standard Opening, Intermittent Pilot Dual Automatic Valve, Straight-Through
Nominal Size 1/2 Inch
End Connection Threaded x Threaded
End to End Distance 4-1/8 Inch
Supply Connection 1/4 Inch Quick Connect Male Terminal
Input Supply Rating 24 Volt AC at 60 Hertz
Temperature Rating 0 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Natural to Liquid Propane Conversion Kit, (1) 3/4 Inch x 1/2 Inch Reducer Bushing, (1) 3/4 Inch Straight Flange
Application Gas Fired Appliance
Applicable Standard UL, CSA
Overall Dimension 2-11/16 Inch Depth x 4-5/8 Inch Height
Fuel Type Natural
Flow Capacity 20000 to 200000 BTU/Hour
Pressure Tapping 1/8 Inch Threaded with Plug
Pressure Regulator Set Point 3.5 Inch WC
