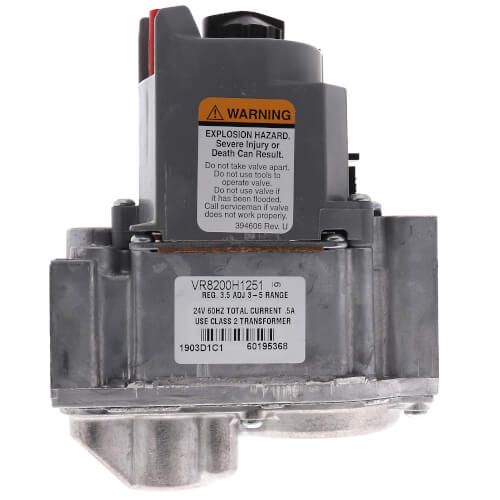

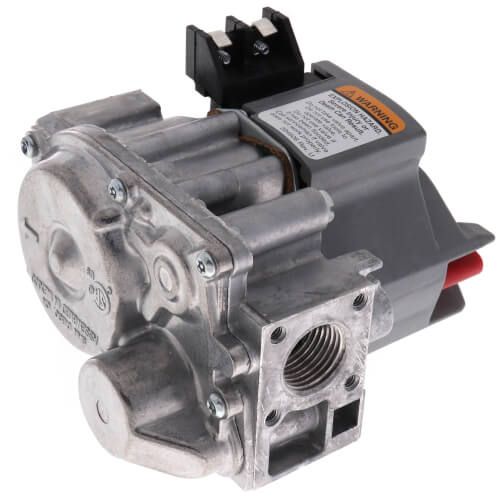

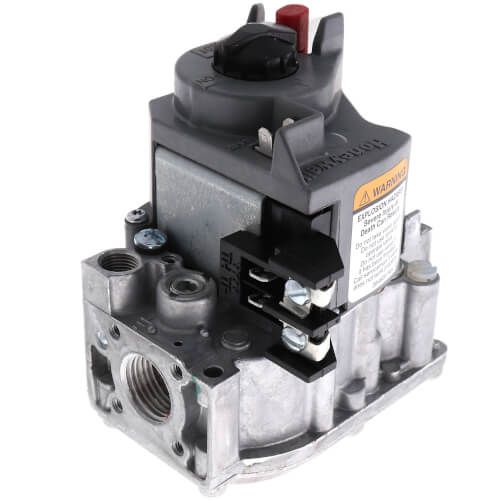

Resideo VR8200H1251 - 1/2", 24 Vac Standing Pilot Gas Valve - Slow Opening
Brand:
SKU
VR8200H1251
Solenoid Gas Valve
Type Standing Pilot Operated, 1-Stage, Straight-Through, Diaphragm
Port Connection 1/2 Inch Compression x 1/2 Inch Compression
Input Supply Rating 24 Volt AC at 60 Hertz
Temperature Rating 0 to 175 Deg F
Pressure Rating 1/2 PSI
Mounting Details 0 to 90 Degree in any Direction from Upright Position of Gas Control Knob, Including Vertically
Media Handled Gas
Inclusions/Features (1) 3/4 Inch Straight Flange, (1) 1/2 Inch x 3/8 Inch Reducer Bushing, Natural to Liquid Propane Conversion Kit, Slow Opening, Manual Valve, (2) Automatic Operator, Servo Pressure Regulator and Pilot Adjustment, Low Voltage
Application Residential Gas Fired Appliance
Applicable Standard UL, CSA
Overall Dimension 4-1/16 Inch Width x 2-11/16 Inch Depth x 5-3/8 Inch Height
Pressure Regulator Setting 3.5 Inch WC
Pressure Tapping Size 1/8 Inch Threaded with Plug
Flow Capacity 20 to 200 CFH
Electrical Connection 1/4 Inch Quick Connect Male Terminal
