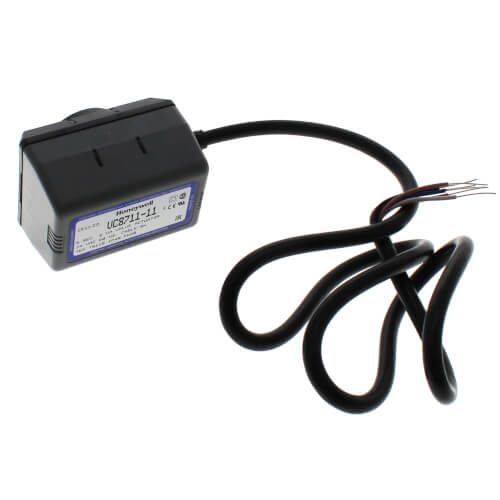

Honeywell Home VC8711ZZ11 - Two position, Low Volt Actuator for VC Series Valves, w/ end switch
Brand:
SKU
VC8711ZZ11
Cartridge Cage Valve Actuator
Type SPST, Direct Coupled, 2-Position, Low Voltage
Operation Type Lever
Voltage Rating 24 Volt AC
Maximum AC Voltage 24 Volt
Frequency Rating 60 Hertz
Power Rating 6 Volt Amp (Driving)
Enclosure IP40
Size 3.7 Inch Width x 2.7 Inch Depth x 2.8 Inch Height
Supply Connection Size 39 Inch Plenum Cable
Body Material Plastic
Operating Temperature 32 to 150 Deg F
Application HVAC System
Approval UL, CSA (Canada and US), CE
Differential Pressure Rating 60 PSID
Timing 6 Second
Includes Auxiliary Switch
