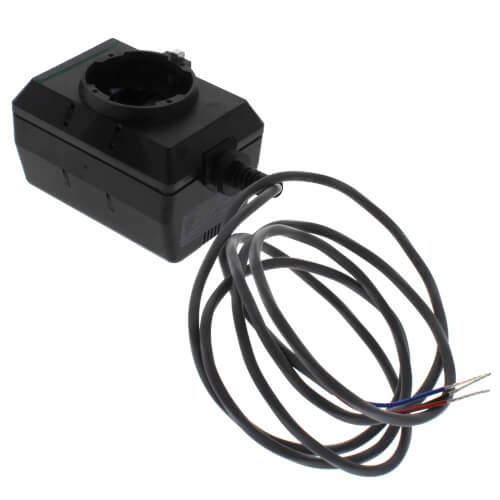

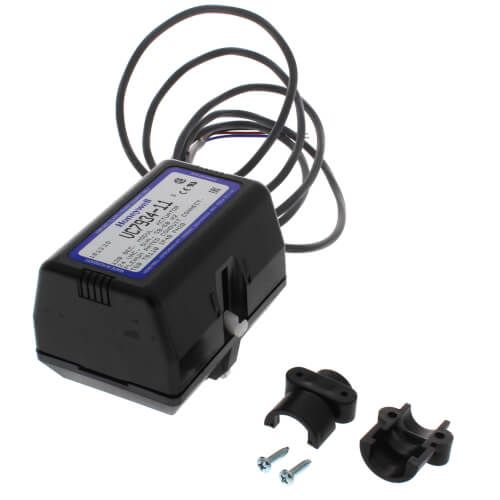

Honeywell Home VC7934ZZ11 - 24v 3-Wire Modulating Actuator
Brand:
SKU
VC7934ZZ11
Valve Actuator
Type SPST/SPDT
Voltage Rating 24 Volt AC
Maximum AC Voltage 24 Volt
Frequency Rating 50/60 Hertz
Power Rating 6 Volt Amp (Driving)
Enclosure IP40
Size 3.7 Inch Width x 2.7 Inch Depth x 2.8 Inch Height
Supply Connection Size 5 Foot Plenum Cable
Body Material Plastic
Operating Temperature 32 to 150 Deg F
Application HVAC System
Approval UL, CSA, CE
Control Signal Range 2 to 10 Volt DC
Timing 120 Second
Flexible Conduit Adapter
