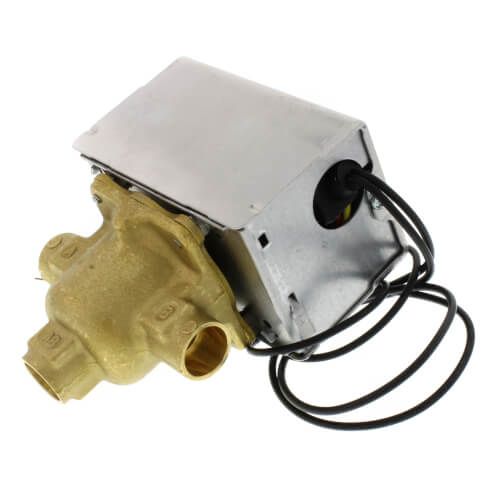

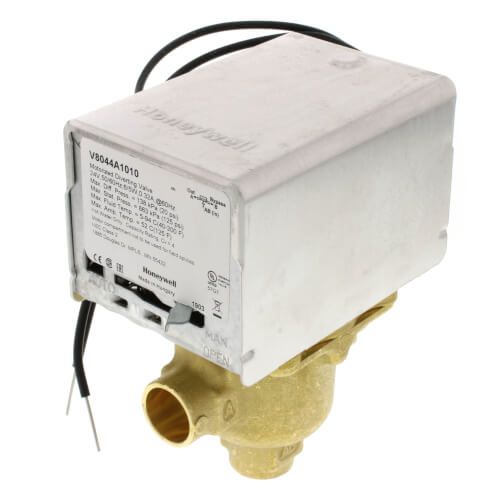

Honeywell Home V8044A1010 - 1/2" Sweat Connection 3 Way Zone Valve, port A normally closed (24v)
Brand:
SKU
V8044A1010
Motorized Zone Valve
Type 3-Way
Nominal Size 1/2 Inch
End Connection Soldered x Soldered
Actuation Type 2-Position, Spring Return to Port A Close, Diverting
Valve Position Normally Closed
Body Material Brass
Valve Timing 30 Second (Open)
Input Supply Rating 7.7 Volt Amp at 24 Volt AC 50/60 Hertz 0.32 Amp
Temperature Rating 40 to 200 Deg F (Fluid)
Pressure Rating 20 PSI (Close-Off), 125 PSI (Static)
Media Handled Hot Water
Inclusions/Features Low Voltage, Manual Opener
Application Hydronic Control
Applicable Standard UL, CSA
Overall Dimension 3-1/2 Inch Width x 2-3/8 Inch Depth x 4-5/8 Inch Height
Flow Capacity 4 CV
Electrical Connection 18 Inch Lead
Material Brass (Seat), Stainless Steel (Stem), Buna-N Rubber (Ball/Plug/Disc), EPDM Rubber (Packing)
Humidity 5 to 95 Percent (Non-Condensing)
