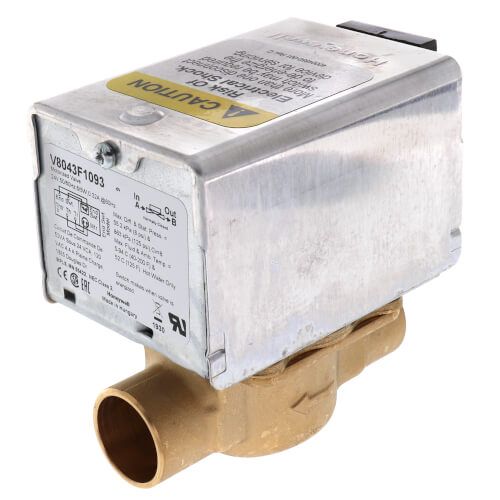

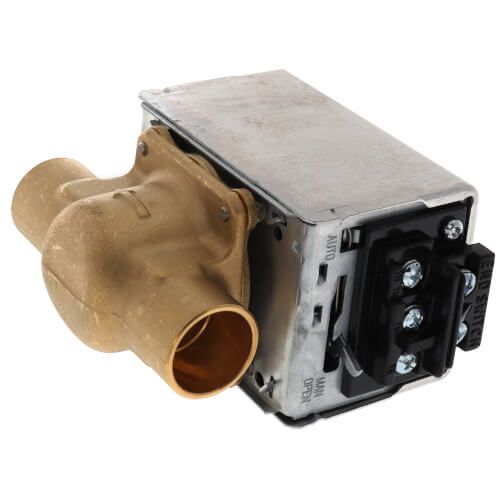

Honeywell Home V8043F1093 - /4" Sweat Connection Zone Valve, normally closed, w/ screw terminal block connection, 8 Cv (24v)
Brand:
SKU
V8043F1093
Motorized Zone Valve
Type 2-Way, 2-Position, Straight-Through, Low Voltage
Nominal Size 3/4 Inch
End Connection Soldered x Soldered
Actuation Type Electric
Valve Position NC
Body Material Brass
Valve Timing 15 Second
Input Supply Rating 24 Volt AC 50/60 Hertz 0.32 Amp
Temperature Rating 125 Deg F
Pressure Rating 8 PSI (Close-Off), 125 PSI (Static)
Media Handled Hot Water
Inclusions/Features Manual Opener
Application Hydronic Control
Applicable Standard UL, CSA
Overall Dimension 3-1/2 Inch Width x 2-3/8 Inch Depth x 4 Inch Height
Flow Capacity 8 Cv
Terminal Type Screw
Valve Action Spring Return to Close
Power Rating 7.7 Volt Amp
End Switch Rating 50 Volt Amp (Pilot Duty), 4.4 Amp (Running), 26.4 Amp at 120 Volt (Inrush)
Material Brass Seat, Stainless Steel Stem, Buna-N Plug/Disc, Rubber Ball
