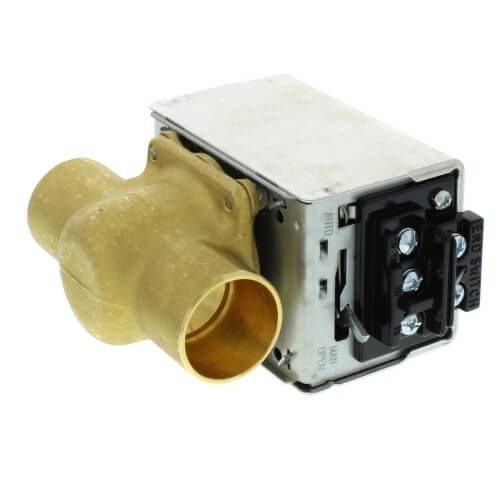

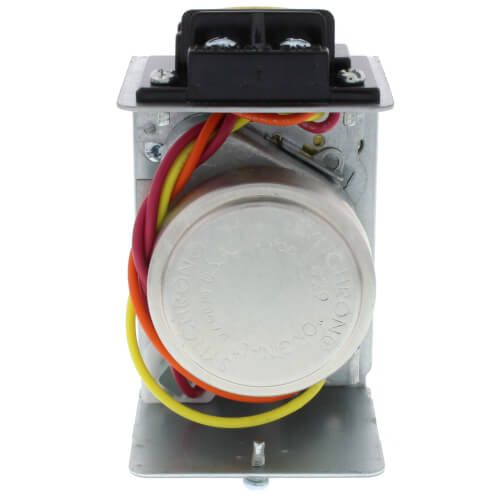

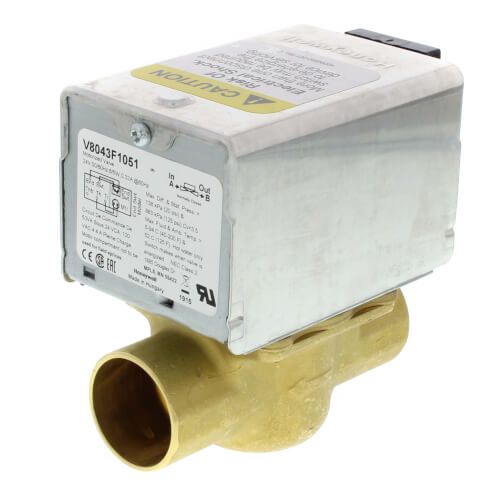

Honeywell Home V8043F1051 - 1" Sweat Zone Valve (Connection = Terminal Block)
Brand:
SKU
V8043F1051
Application: Zoning
Size: 1"
Flow Capacity (Cv): 3.5
Width: 4-7/8"
End Switch: Yes
Height: 4"
Max Pressure (PSI): 300
Material: Brass
Amperage: 0.3
Position: Normally Closed
Voltage: 24v
Depth (Inches): 2-3/8"
Wiring: Screw Terminal Block
Body Pattern: 2-Way, Straight-Through
Hertz: 59, 50
Max Ambient Temp (°F): 125°F
Max Close-Off PSI: 20 psi
Max Temp (F): 200°F
Temperature Range (F): 50°F - 200°F
Min Temp (F): 50°F
Connection Type: Sweat
