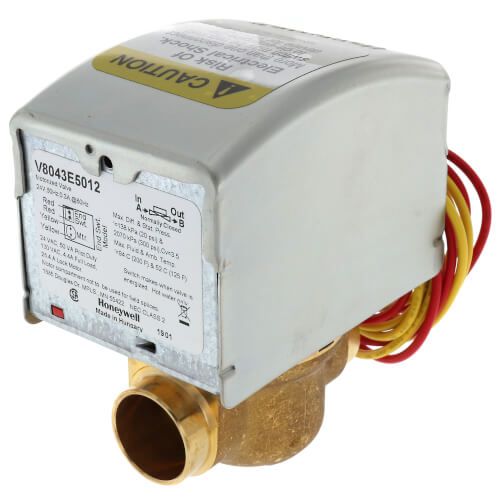

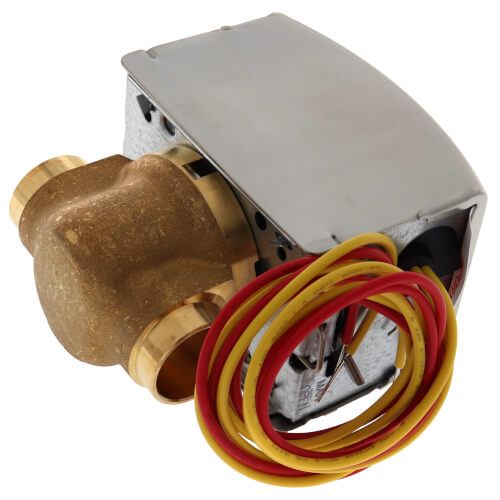

Honeywell Home V8043E5012 - 3/4" Sweat Connection Zone Valve, normally closed, w/ manual opener (24v)
Brand:
SKU
V8043E5012
Motorized Zone Valve
Type 2-Way, Straight-Through
Nominal Size 3/4 Inch
End Connection Soldered x Soldered
Actuation Type 2-Position, Spring Return to Close
Valve Position Normally Closed
Body Material Brass
Valve Timing 15 Second (Open)
Input Supply Rating 7.2 Volt Amp at 24 Volt AC 60 Hertz 0.32 Amp
Temperature Rating 50 to 200 Deg F (Fluid)
Pressure Rating 20 PSI (Close-Off), 300 PSI (Static)
Media Handled Hot Water
Inclusions/Features Low Voltage, Manual Opener, SPST End Switch
Application Hydronic Control
Applicable Standard CSA
Overall Dimension 3-1/2 Inch Width x 2-3/8 Inch Depth x 4-3/8 Inch Height
Flow Capacity 3.5 Cv
Electrical Connection 18 Inch Lead
Material Brass (Seat), Stainless Steel (Stem), EPDM Rubber (Packing), Buna-N Rubber Ball (Plug/Ball/Disc)
Ambient Temperature 125 Deg F
Relative Humidity Range 5 to 95 Percent (Non-Condensing)
