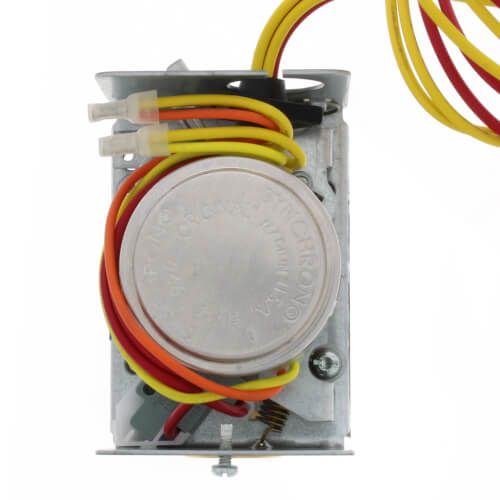

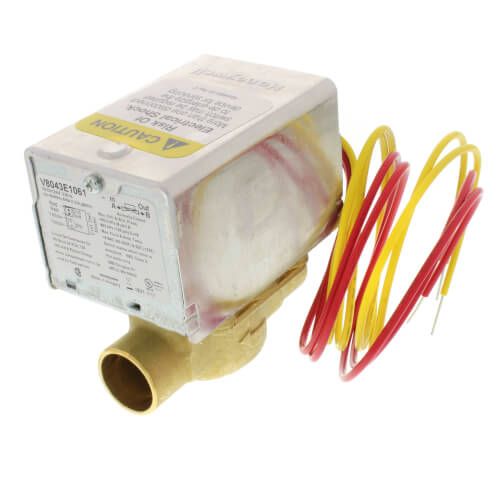

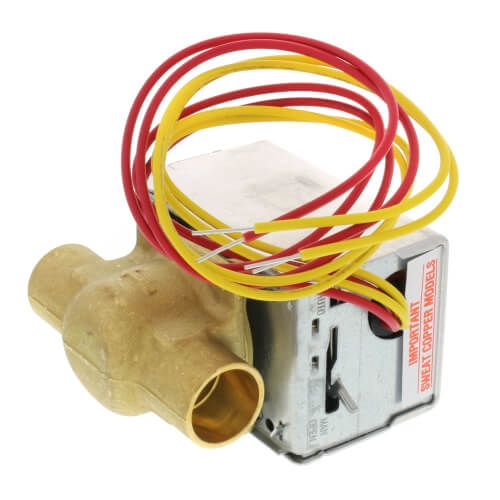

Honeywell Home V8043E1061 - 3/4" Sweat Connection Zone Valve, normally closed, 8 Cv (24v)
Brand:
SKU
V8043E1061
Application: Zoning
Size: 3/4"
Width (Inches): 3-1/2"
Depth (Inches): 2-3/8"
Height: 4"
Material: Brass
Flow Capacity (Cv): 8
Voltage: 24v
Wiring: 18" Leads
Body Pattern: Straight-Through, 2-Way
Hertz: 50, 60
Max Ambient Temp (°F): 125°F
Max Close-Off PSI: 8 psi
Position: Normally Closed
Max Temp (F): 200°F
Min Temp (F): 50°F
Temperature Range (F): 50°F - 200°F
Connection Type: Sweat
Valve Action: Spring Return to Close
Power Consumption: 7.7 VA
Static Pressure: 125 psi
Nominal Timing: 15 Seconds
End Switch: Yes
