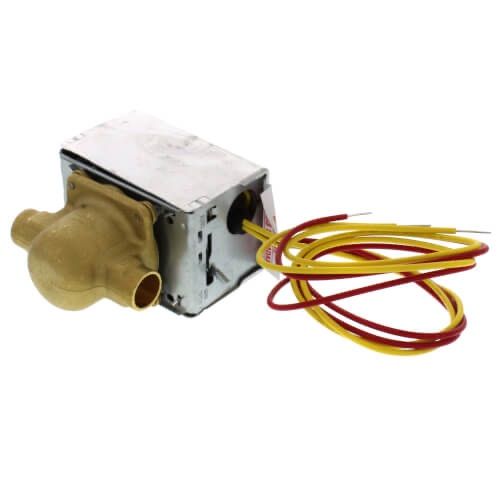

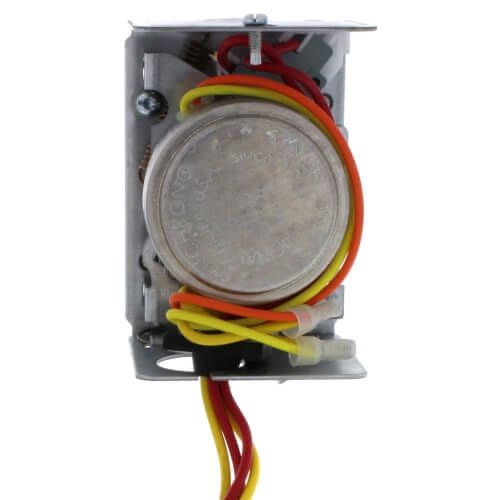

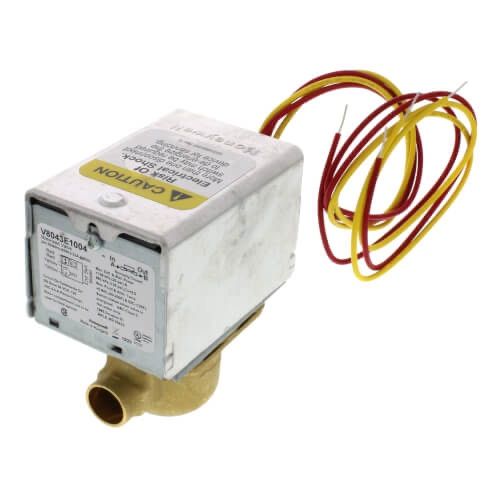

Honeywelll Home V8043E1004 - 1/2" Sweat Zone Valve (Connection = 18" Leads)
Brand:
SKU
V8043E1004
Application: Zoning
Size: 1/2"
Connection Type: Sweat
Voltage: 24v
Body Pattern: 2-Way
Flow Capacity (Cv): 4.3, 3.5
Width (Inches): 3-1/2"
End Switch: Yes
Height: 4"
Material: Brass
Amperage: 0.3
Position: Normally Closed
Depth (Inches): 2-3/8"
Max Pressure (PSI): 300
Wiring: 18" Leads
Hertz: 59
Max Ambient Temp (°F): 125°F
Max Close-Off PSI: 20 psi
Temperature Range (F): 50°F - 200°F
Min Temp (F): 50°F
Max Temp (F): 200°F9.75'' (24.8 cm), Weight: 2.4 oz (68 g)
Product Type: Screwdriver
Bit Type: Cabinet Tip
Shank Length: 6"
Size: 3/16"
Length (Inches): 9-3/4"
