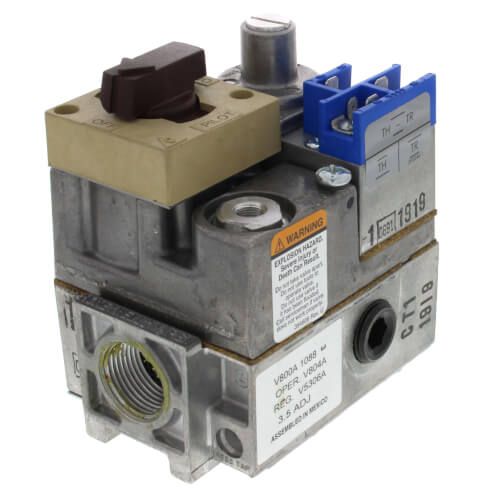

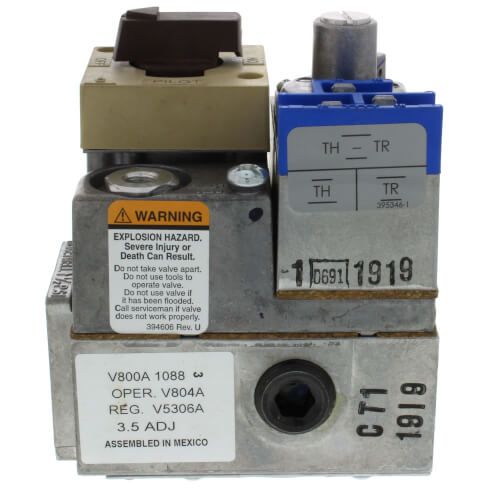

Honeywelll V800A1088 - Standard Pilot Gas Valve - 24 Vac - 3/4" x 3/4" Inlet/Outlet Size
Brand:
SKU
V800A1088
Gas Valve
Type Standing Pilot Operated, 1-Stage, Straight-Through
Port Connection 3/4 Inch Threaded x 1/2 Inch Threaded (Left/Right Side)
Input Supply Rating 24 Volt AC at 60 Hertz
Temperature Rating 32 to 175 Deg F
Pressure Rating 1/2 PSI
Mounting Details 0 to 90 Degree in any Direction from Upright Position of Gas Control Knob, Including Vertically
Media Handled Gas
Inclusions/Features (1) 1/2 Inch x 3/8 Inch and (2) 3/4 Inch x 1/2 Inch Reducer Bushing, Natural to Liquid Propane Conversion Kit, Q340 Thermocouple, Pilot Flow Adjustment Screw, Low Voltage, Standard Opening
Application Residential Gas Fired Appliance
Applicable Standard UL, CSA
Overall Dimension 4-1/16 Inch Width x 3-3/16 Inch Depth x 4-3/4 Inch Height
Pressure Regulator Setting 3.5 Inch WC
Pressure Tapping Size 1/8 Inch Threaded with Plug
Electrical Connection Combination Screw and 1/4 Inch Male Quick Connect
