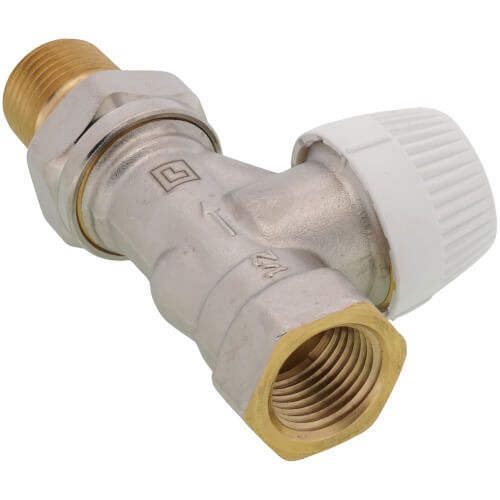

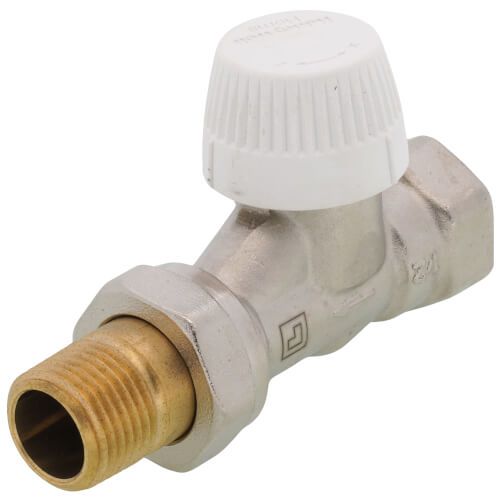

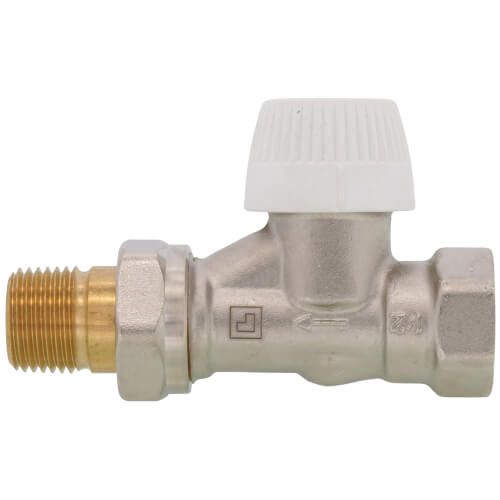

Honeywell Home V2040DSL15 - 1/2" Horizontal Valve For Standard Capacity Radiator
Brand:
SKU
V2040DSL15
Application: Hot Water
Size: 1/2"
Body Pattern: Straight
Connection Type: Threaded
Position: Normally Open
Temperature Range (F): 248°F Max
Flow Capacity (Cv): 2.5
Capacity: Standard
BTU: 59100 Btu/hr (steam)
Capacity (BTU): 59100
Inlet Size: 1/2"
Inlet Type: NPT
Outlet Type: Threaded (IPS)
Material: Nickel Plated Bronze
Max Pressure (PSI): 15 (Steam), 150 (Hot Water)
Differential: For low noise: 3 psi, With T100 or T200: 15 psi, With MV100: 36 psi
