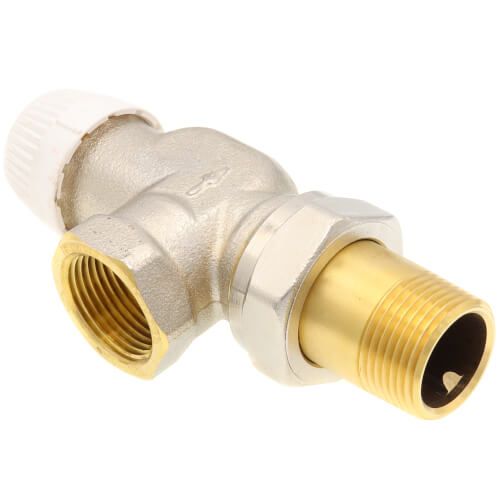

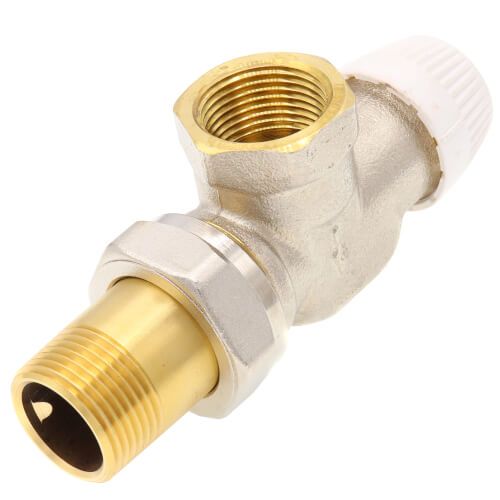

Honeywell Home V2040ASL20 - 3/4" Horizontal Angle Threaded Radiator Valve
Brand:
SKU
V2040ASL20
Description: Horizontal Angle Pattern 3/4 in. Valve for Standard Capacity Radiator
Application Type : Replaces most manual valves with minimum piping changes.
Pipe Size (inch): 3/4 in.
Pipe Size (DN): DN20
Body Pattern: Horizontal Angle
Capacity: standard
Capacity (Cv): 2.7 Cv
Capacity (Btu/hr-steam): 63,800 Btu/hr
Connection Type: Threaded
Pressure Ratings (Hot Water (psi)): 150 psi maximum
Pressure Ratings (Hot Water (kPa)): 1034 kPa maximum
Pressure Ratings (Steam (psi)): 15 psi maximum
Pressure Ratings (Steam (kPa)): 103 kPa
Differential Pressure Ratings (psi): 17 psi maximum
Differential Pressure Ratings (psi): With T100 or T200: 15 psi
Differential Pressure Ratings (psi): With MV100: 36 psi
Differential Pressure Ratings (psi): For low noise: 3 psi
Temperature Ratings (F): 248 F Maximum
Temperature Ratings (C): 120 C Maximum
Dimensions (in.): 1 3/16 in. x 2 1/2 in.
Materials (Body): Nickel Plated Bronze
Cartridge Change Tool: Yes - Use VA8200A001
Used With: T100
Inlet Connection Size (in.): 3/4 in.
Inlet Connection Type: NPT
Outlet Connection Type: Threaded
