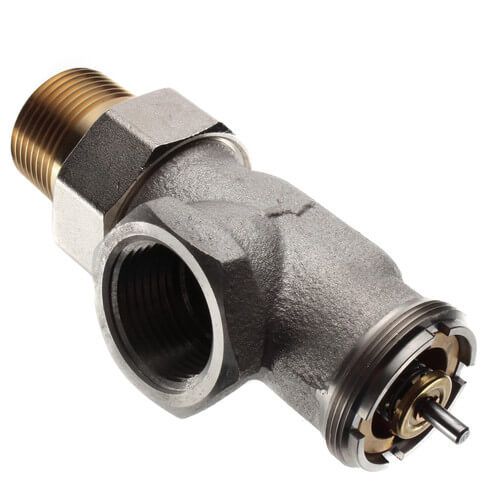

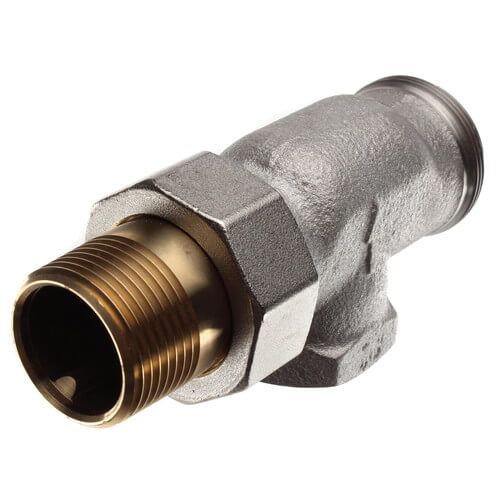

Application: Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units when used with T104 Thermostatic Actuators

Temperature Range (F): 248 F Maximum

Temperature Range (C): 120 C Maximum

Used With: T104

Connection Type: Threaded

Body Pattern: Horizontal Angle

Pressure Ratings (psi): Hot Water--150 psi maximum; Steam--15 psi maximum

Pressure Ratings (kPa): Hot Water--1034 kPa maximum; Steam--103 kPa

Pipe Size (inch): 1 in.

Pipe Size (DN): DN25

Maximum Differential Pressure Ratings (Close-off) (psi): 17 psi maximum

Capacity: high

Capacity (Cv): 7 Cv

Capacity (Btu/hr-steam): 193,000 Btu/hr

Materials (Body): Bronze
