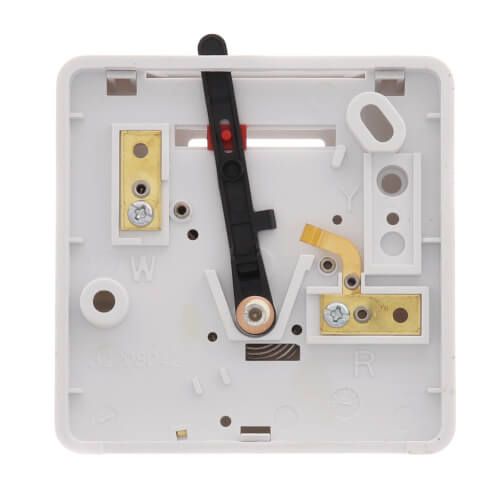

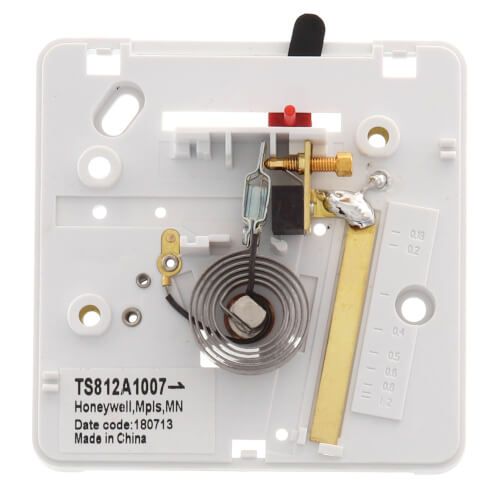

Honeywell Home TS812A1007 - T812, Heat Only, Square Thermostat, w/ Pos Off Switch
Brand:
SKU
TS812A1007
Thermostat
Type Non-Programmable, 1-Heat
Cover Type Square
Color Premier White
Voltage Rating 750 Millivolt
Current Rating 1 Amp at 24 Volt AC
Switch Type SPST, Snap Action
Size 3-1/8 Inch Width x 7/8 Inch Depth x 3-1/8 Inch Height
Inrush Current 2.5 Amp at 24 Volt AC
Sensor Element Bi-Metal
Terminal Designation R, W
Accuracy 3 Deg F
Setting Temperature Rating 45 to 95 Deg F
