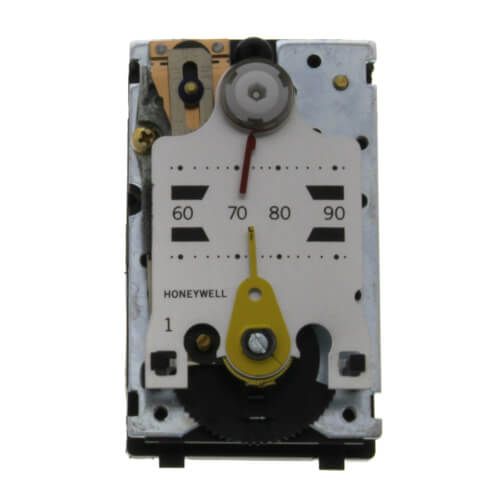

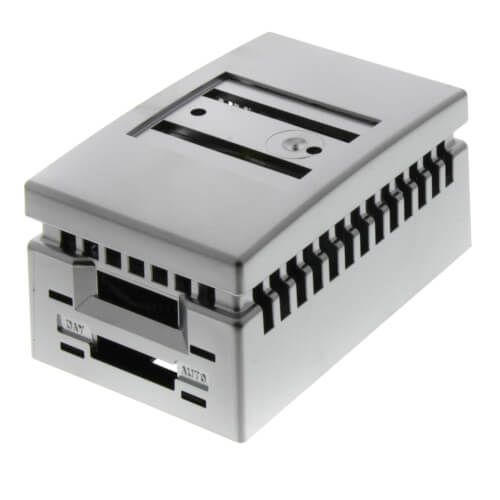

Honeywell TP970A2259 - Pneumatic Thermostat Direct Acting, Wall Thermostat and Satin Chrome Cover (59° to 90°F setpoint range)
Brand:
SKU
TP970A2259
Thermostat
Type Direct Acting, Pneumatic, Pilot-Bleed, Single Temperature
Cover Type Universal Locking
Color Satin Chrome
Temperature Rating 100 Deg F
Size 2 Inch Width x 1-5/8 Inch Depth x 3-1/4 Inch Height
Sensor Element Bi-Metal
Number of Pipe 2
Mounting Type Wall Mount
Operating Pressure Rating 25 PSI
Setting Temperature Rating 59 to 90 Deg F
Shipping and Storage Temperature Range 150 Deg F
Throttling Range 2 to 10 Deg F
Airflow Usage 0.011 SCFM
