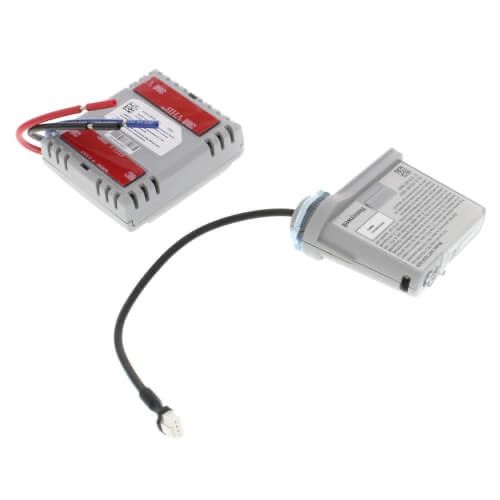

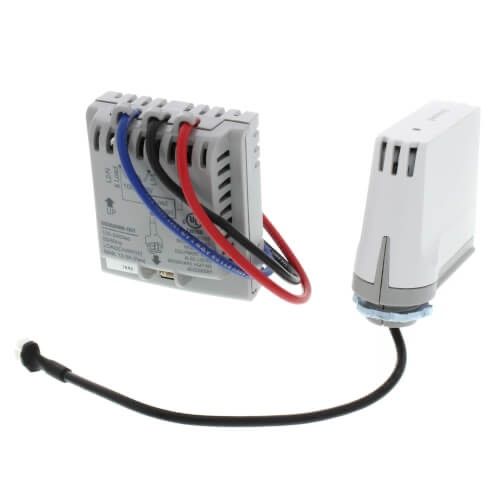

Honeywell Home TLM1110R1000 - RedLINK Enabled Electrical Heat Equipment Interface Module (EIM)
Brand:
SKU
TLM1110R1000
Electrical Heat Equipment Interface Module
Item Electrical Heat Equipment Interface Module, Enabled
Size 2.49 Inch Width x 1.28 Inch Depth x 3.03 Inch Height (Relay), 2.63 Inch Width x 1.16 Inch Depth x 2.89 Inch Height (Antenna)
Mounting Type Vertical
Color/Finish Gray (Relay), White and Light Almond (Antenna)
Used On Item Thermostat Kit
Used On Model/Brand YTL9160AR1000, EConnect
Applicable Standard UL
Supply Voltage 100 to 240 Volt AC
Current Rating 0.4 Amp (Resistive Only) 100 Watt at 240 Volt AC, 50 Watt at 120 Volt AC (Minimum Load)/12.5 Amp (Resistive Only), 3000 Watt at 240 Volt AC, 1500 Watt at 120 Volt AC (Maximum Load)
Frequency Rating 50/60 Hertz
Switch Type Relay
Switching Action SPST
Operating Temperature -20 to 60 Deg C
Humidity 5 to 95 Percent Relative (Non-Condensing)
Power Method Hardwired
Electrical Connection 6 Inch Tinned Copper Lead Wire
Includes Electrical Heat Equipment Interface, White and Light Almond Antenna Cover
Application Electric Heating, Baseboard Heater, Convector/Fan-Forced Heater
