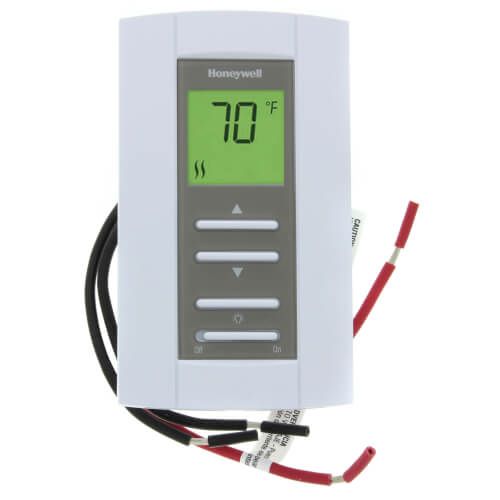

Honeywell Home TL7235A1003 - LineVoltPro Digital, Non-Programmable, Electric Heat Thermostat
Brand:
SKU
TL7235A1003
Thermostat
Type Digital Non-Programmable, 1-Heat
Cover Type Rectangular Vertical
Color Premier White
Voltage Rating 208/240 Volt AC at 50/60 Hertz
Current Rating 15 Amp
Power Rating 3600 Watt at 240 Volt AC, 3120 Watt at 208 Volt AC
Switch Type DPST, Relay
Temperature Rating 32 to 122 Deg F
Size 2-3/4 Inch Width x 7/8 Inch Depth x 4-7/8 Inch Height
Approval UL, CSA (Canada and US)
Sensor Element Thermistor
Connection Type 5.5 Inch Tinned Copper Lead Wire
Accuracy +/- 1 Deg F
Setting Temperature Rating 40 to 86 Deg F
