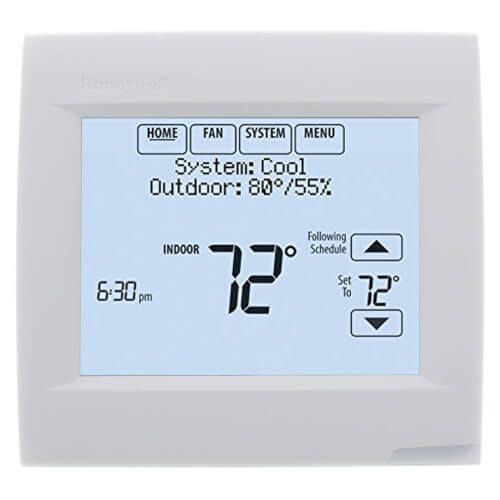

Honeywell Home TH8110R1008 - VisionPRO 8000 with RedLINK technology, Programmable, 1H/1C, Touchscreen Thermostat
Brand:
SKU
TH8110R1008
Thermostat
Type 7 Day Programmable/Non-Programmable, Wireless, 1-Heat/1-Cool (Heat Pump), 1-Heat/1-Cool (Conventional), Auto/Manual Changeover
Color Arctic White
Voltage Rating 18 to 30 Volt AC/750 Millivolt at 50/60 Hertz
Size 4-15/16 Inch Width x 1-1/8 Inch Depth x 4-5/8 Inch Height
Display Size 10 Square Inch
Power Method Battery/Hardwired
Terminal Type Screw
Switch Positions Heat-Off-Cool-Auto (System), Auto-On-Circ (Fan)

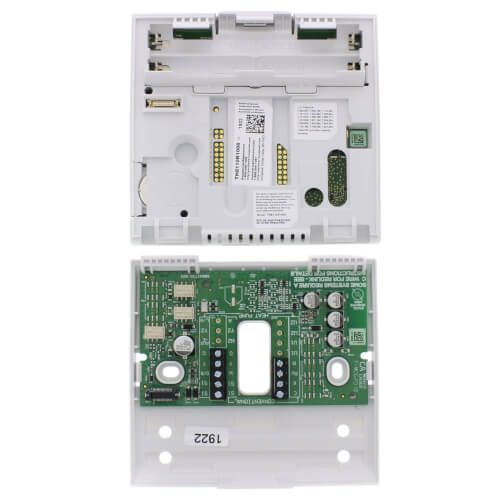

Terminal Designation R, Rc, C, W (O/B), Y, G, K, S1
Ambient Temperature 32 to 120 Deg F
Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
