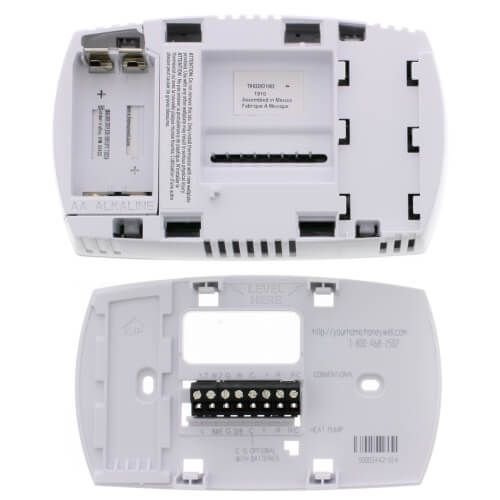

Honeywell Home TH6220D1002 - FocusPro Programmable, 2H/2C, Standard Display Thermostat
Brand:
SKU
TH6220D1002
Thermostat
Type 5-1-1/5-2 Day Digital Programmable, 2-Heat/1-Cool (Heat Pump), 2-Heat/2-Cool (Conventional), Auto/Manual Changeover
Cover Type Rectangular Horizontal
Color Premier White
Voltage Rating 20 to 30 Volt AC/750 Millivolt at 50/60 Hertz
Current Rating 0.02 to 1 Amp (Heat/Cool), 0.02 to 0.5 Amp (Fan)
Size 5-13/16 Inch Width x 1-1/2 Inch Depth x 3-9/16 Inch Height
Display Size 3.75 Square Inch
Sensor Element Thermistor
Humidity Range 5 to 90 Percent Relative (Non-Condensing)
Terminal Designations RC, R, W (O/B), W2 (AUX), Y, Y2 (E), G, L, C
Power Method Battery/Hardwired
Ambient Temperature 32 to 120 Deg F
Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
