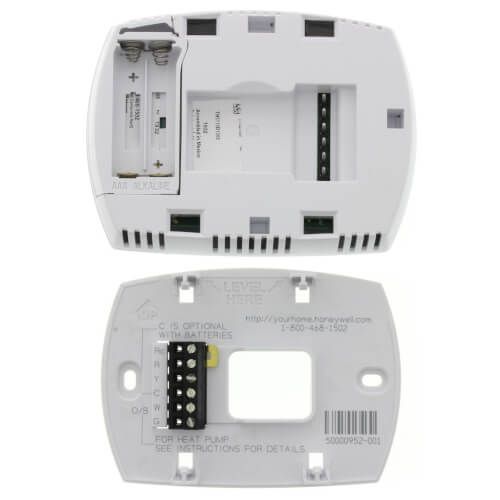

Honeywell Home TH5110D1006 - FocusPro Non-Programmable, 1H/1C Thermostat
Brand:
SKU
TH5110D1006
Thermostat
Type Digital Non-Programmable, Auto/Manual Changeover
Cover Type Rectangular Horizontal
Color Premier White
Voltage Rating 20 to 30 Volt AC/750 Millivolt at 50/60 Hertz
Current Rating 0.02 to 1 Amp (Heat/Cool), 0.02 to 0.5 Amp (Fan)
Switch Type Relay
Size 4-1/2 Inch Width x 1-5/16 Inch Depth x 3-7/16 Inch Height
Display Size 1.95 Square Inch
Sensor Element Thermistor
Terminal Designation R, Rc, C, W (O/B), Y, G
Ambient Temperature 32 to 120 Deg F
Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
Application Conventional and Heat Pump system
