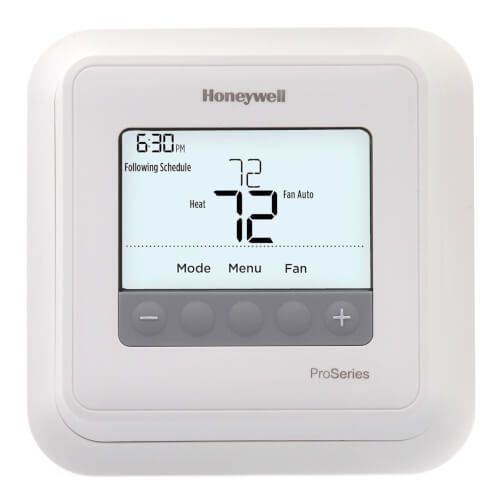

Honeywell Home TH4210U2002 - T4 Pro Programmable Thermostat, 2H/1C Heat Pump, 1H/1C Conventional
Brand:
SKU
TH4210U2002
Thermostat
Type 5-1-1/5-2/7 Day Programmable/Non-Programmable, 2-Heat/1-Cool (Heat Pump), 1-Heat/1-Cool (Conventional), Auto/Manual Changeover
Color White
Voltage Rating 20 to 30 Volt AC at 50/60 Hertz
Current Rating 0.02 to 1 Amp (Heat/Cool), 0.02 to 0.5 Amp (Fan)
Switch Type Relay
Size 4-1/16 Inch Length x 4-1/16 Inch Width x 1-3/32 Inch Depth
Display Size 3.93 Square Inch
Switch Position Heat-Off-Cool (System), Auto-On (Fan)
Ambient Temperature 32 to 120 Deg F
Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
Application Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot Water Fan Coil, Geothermal Heat Pump, Air to Air Heat
