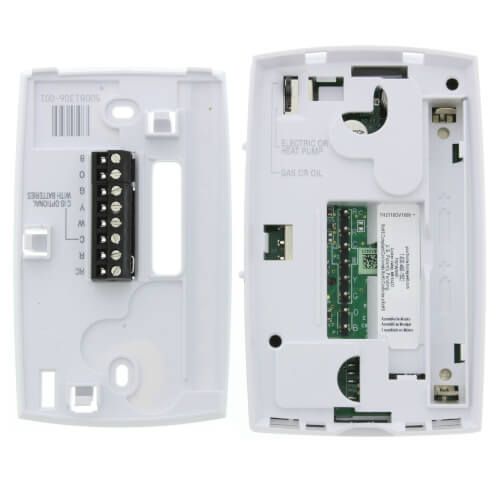

Honeywell Home TH2110DV1008 - PRO 2000 Programmable, 1H/1C, Vertical Thermostat
Brand:
SKU
TH2110DV1008
Thermostat
Type 5-2 Day Digital Programmable, 1-Heat/1-Cool, Manual Changeover
Cover Type Rectangular Vertical
Color Premier White
Voltage Rating 20 to 30 Volt AC/750 Millivolt at 50/60 Hertz
Current Rating 0.02 to 1 Amp (Heat/Cool)
Size 2-7/8 Inch Width x 1-1/8 Inch Depth x 4-11/16 Inch Height
Display Size 1.32 Square Inch
Sensor Element Bi-Metal
Humidity Range 5 to 90 Percent Relative (Non-Condensing)
Accuracy +/- 1 Deg F
Power Method Battery/Hardwired
Terminal Designations R, RC, C, W, Y, G, O, B
Switch Position Heat-Off-Cool (System), Auto-On (Fan)
Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
Ambient Temperature 32 to 120 Deg F
Application Heat Pump
