Honeywell Home TH1110DH1003 - PRO 1000 Horizontal Non-Programmable Thermostats (1 Heat/1 Cool)
Brand:
SKU
TH1110DH1003
Thermostat
Type Digital Non-Programmable, 1-Heat/1-Cool, 1-Stage, Manual Changeover
Cover Type Rectangular Horizontal
Color Premier White
Voltage Rating 20 to 30 Volt AC/750 Millivolt at 50/60 Hertz
Current Rating 0.02 to 1 Amp (Heat/Cool)
Size 4-5/8 Inch Width x 1-3/16 Inch Depth x 3-7/16 Inch Height
Display Size 1.32 Square Inch
Sensor Element Thermistor

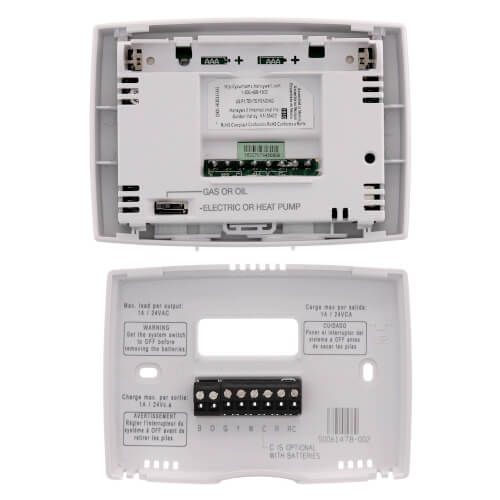

Terminal Designations R, RC, C, W, Y, G, O, B
Humidity 5 to 90 Percent Relative (Non-Condensing)
Ambient Temperature 32 to 120 Deg F
Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
