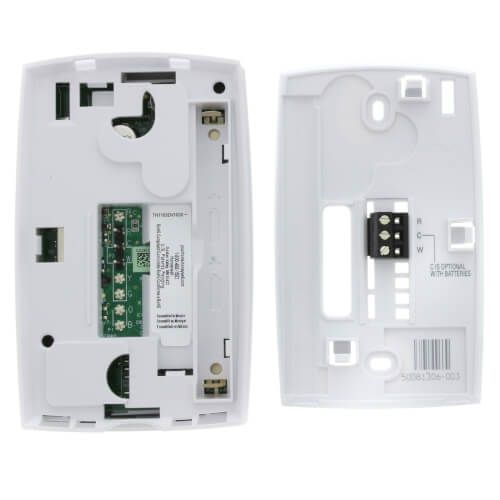

Honeywell Home TH1100DV1000- PRO 1000 Non-Programmable, Heat Only, Vertical Thermostat
Brand:
SKU
TH1100DV1000
Type Digital Non-Programmable, 1-Heat, 1-Stage, Manual Changeover
Cover Type Rectangular Vertical
Color Premier White
Voltage Rating 20 to 30 Volt AC/750 Millivolt at 50/60 Hertz
Current Rating 0.02 to 1 Amp (Heat)
Size 2-7/8 Inch Width x 1-1/8 Inch Depth x 4-11/16 Inch Height
Display Size 1.32 Square Inch
Switch Position Heat-Off (System)
Power Method Dual Power
Terminal Designations R, C, W
Humidity 5 to 90 Percent Relative (Non-Condensing)
Setting Temperature Rating 40 to 90 Deg F/35 to 90 Deg F (Heat)
